Battery Charge Function 41
6.2.4 Trigger Source
Press the button then use the soft key to select List/Battery > Batt Test Setup > Batt Test Settings >
Trigger Source.
Datalog can be triggered in three ways: Manual, Digital IO, and Remote.
• Manual: Select to use manual trigger. The trigger softkey will be available as Datalog Start/Stop. See section 7.2.7
• Digital IO: Select to use the digital I/O pins to receive a trigger. To assign a function to a pin see section8.4.1.
• Remote: Select to receive a trigger from a remote interface.
Note:
For Digital IO and Remote the rst trigger will turn Data log on. A second trigger will begin
data recording. will be displayed on the top right when data is being logged. See 7.2.7
6.2.5 File Path
Press the button then use the soft key to select List/Battery > Batt Test Setup > Batt Test Settings >
Next Pg. > File Path.
Using the rotary knob and the key to navigate through the le path of the USB. Once the desired location has
been found select save by pressing the softkey furthest to the left.
Verify that the correct path was chosen in the Data Logger menu.

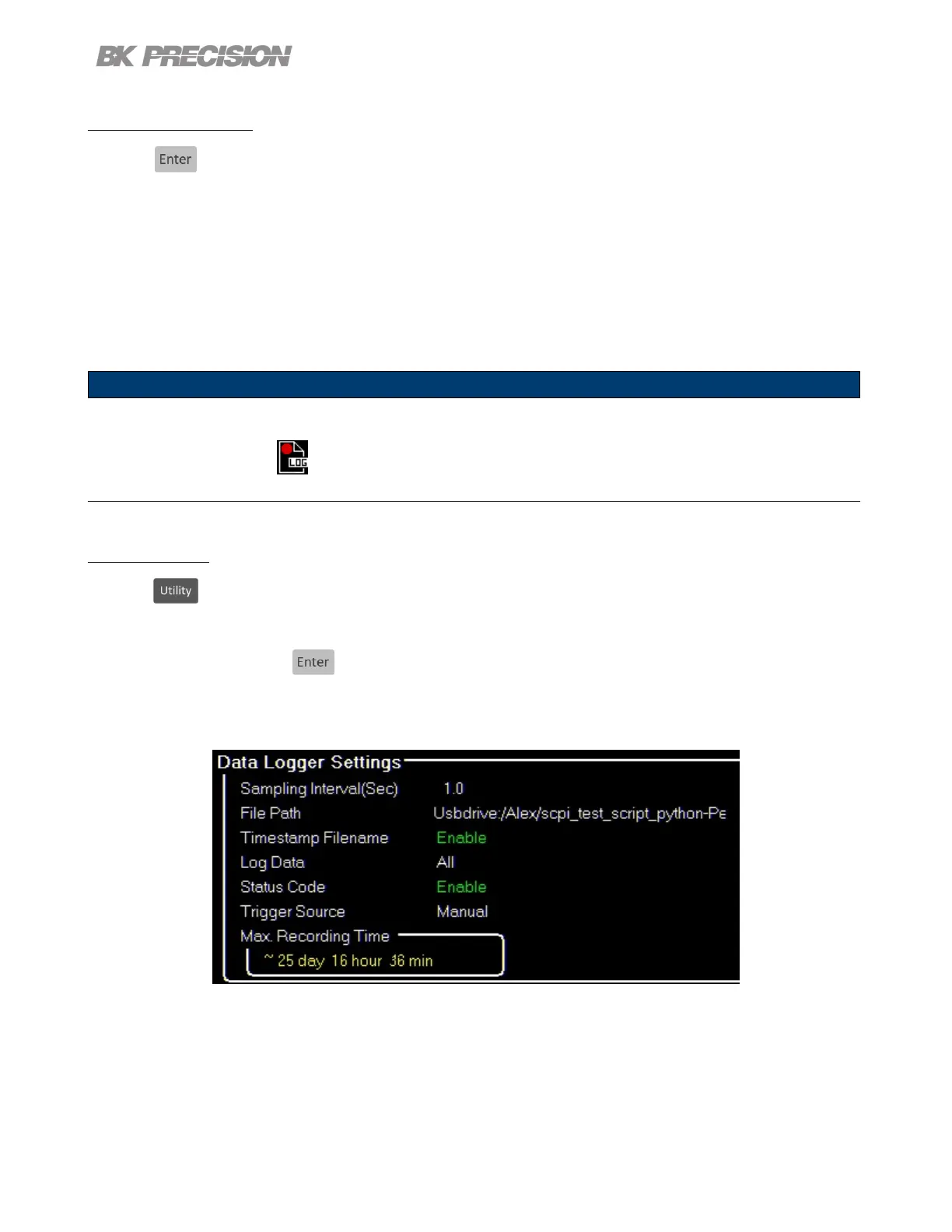

Figure 6.3 File Path Selected
To Next Page
