Data Logger
The data logger can record the output voltage, current, and the error codes. The Data Logger can be congured to
record either Voltage only, Current only, or both.
Connect a USB ash drive to the front panel USB port. Max. Recording time will vary based on the ash drive size and
the amount of the data being logged.

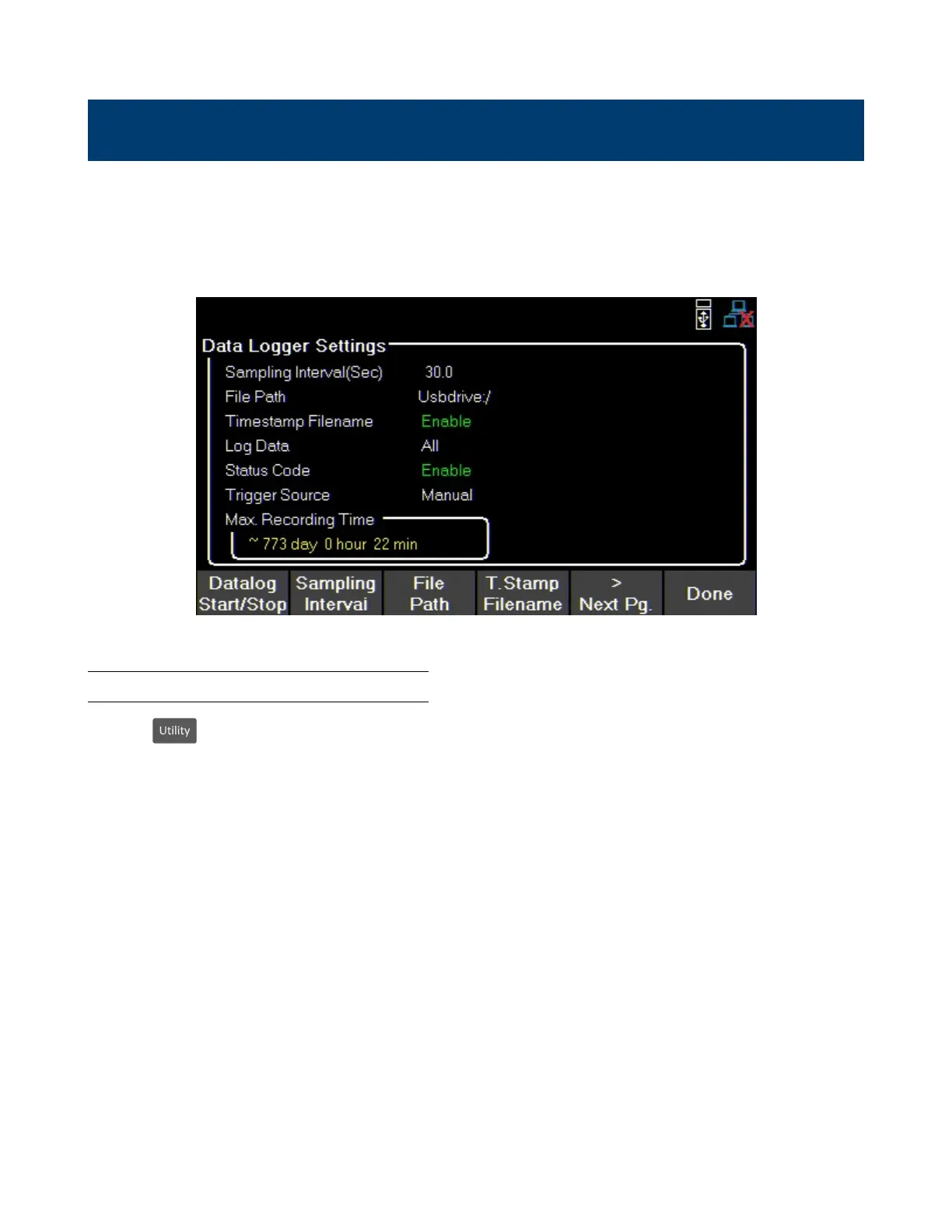

Figure 7.1 Data Logger Max Time
7.1 Using the Data Logger Function
Press the button then use the soft key to select Data logger. The Data Logger settings can be selected in this
menu.
Before starting the Data Logger its settings must be adjusted.
1. Set the desired Sampling Interval See 7.2.1
2. Select a File Path to determine where to store the collected data. see 7.2.2
3. Enable or disable T. Stamp Filename. See 7.2.3
4. Choose what data to record. See 7.2.4
5. Enable or disable Status Code. See 7.2.5
6. Select a Trigger Source. See 7.2.6
7. After setting all desired parameters press datalog Start/Stop to begin recording. Staring data log will vary based
on chosen trigger. See 7.2.7
