Basic Front Panel Operation 23
3.2 Display
The power supplies have two main display modes: output overview and live output monitoring display. Press the
button to cycle between the dierent display modes or to return home when viewing any other menu.
Output Overview
Provides information of the outputs’:
• State
• Run time
• Voltage
• Current
• Power
• Vmax/Vmin
• OVP/OCP
• OnDelay/ODelay
Allows conguration of:
• Vset
• Iset
• Vmax/Vmin
• OVP/OCP
• OnDelay/ODelay

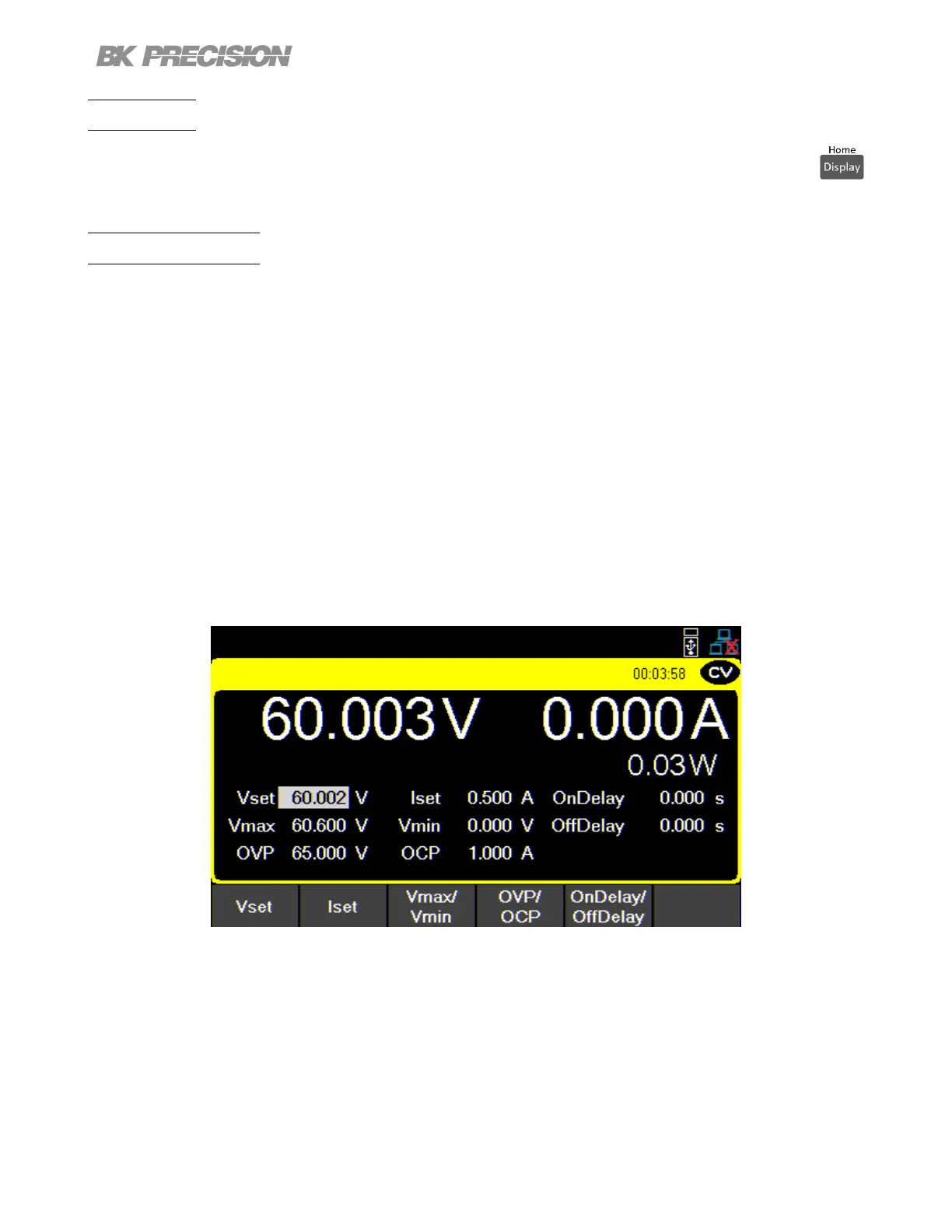

Figure 3.3 Output Overview Display
