List Mode 31
Pace:
Set the pace in which steps are executed.
a. Dwell: The next step outputs once the dwell time elapsed.
b. Trigger: After the dwell time elapsed, wait for a trigger beforeoutputting the next step.
Trigger Source
Set the trigger source.
a. Manual: Select to use amanual trigger. The Trigger softkeywill be available onceList State is on and exit out of
the menu to the main display. Press it to manually trigger the list program.If the step dwell time has not elapsed,
then Trigger will not have a white background. When dwell time elapses, Triggerbackground color will turn white to
indicate the trigger is ready.

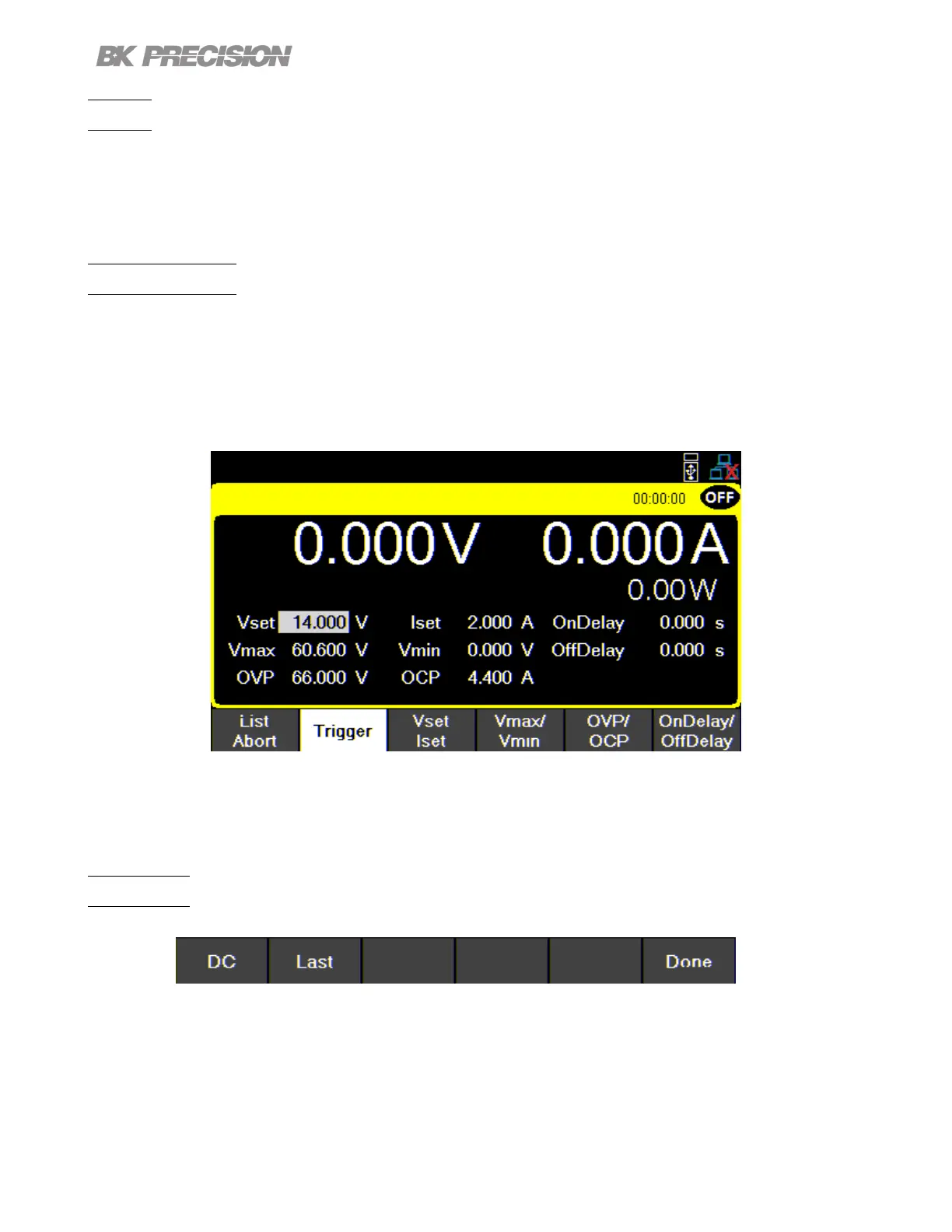

Figure 5.2 Waiting for Trigger
b. Digital IO: Select to use the digital I/O pins to receive a trigger. To assign trigger input function to a pin see 8.4.1.
c. Remote: Select to receive a trigger from the remote interface.
After List
Sets the voltage and current settings at the end of the list program.
a. DC: Returns to the last DC output voltage and current setting prior to enabling list mode.
b. Last: Retains the last step voltage and current setting after the list program ends.
