Configuration Mode (ConF)
233
Transfer of a drive configuration to another one, with graphic display terminal, when the drive uses
[MULTIMOTORS/CONFIG.] (MMC-) function
Let A be the source drive and B the drive addres s ed. In this exam ple, s witching is controlled by logic input.
1. Connect graphic display term inal to the drive A.
2. Put logic input LI ( [2 Configurations] (CnF1)) and LI ( [3 Configurations] (CnF2)) to 0.
3. Download configuration 0 in a file of graphic display term inal (exam ple: file 1 of the graphic display term inal).
4. Put logic input LI ( [2 Configurations] (CnF1)) to 1 and leave logic input LI ( [3 Configurations] (CnF2))
to 0.
5. Download configuration 1 in a file of graphic display term inal (exam ple: file 2 of the graphic display term inal).
6. Put logic input LI ( [3 Configurations] (CnF2)) to 1 and leave logic input LI ( [2 Configurations] (CnF1))
to 1.
7. Download configuration 2 in a file of graphic display term inal (exam ple: file 3 of the graphic display term inal).
8. Connect graphic display term inal to the drive B.
9. Put logic input LI ( [2 Configurations] (CnF1)) and LI ( [3 Configurations] (CnF2)) to 0.
10. Make a factory s etting of the drive B.
11. Download the configuration file 0 in the drive (file 1 of graphic dis play term inal in this exam ple).
12. Put logic input LI ( [2 Configurations] (CnF1)) to 1 and leave logic input LI
( [3 Configurations] (CnF2)) to 0.
13. Download the configuration file 1 in the drive (file 2 of graphic dis play term inal in this exam ple).
14. Put logic input LI ( [3 Configurations] (CnF2)) to 1 and leave logic input LI
( [2 Configurations] (CnF1)) to 1.
15. Download the configuration file 2 in the drive (file 3 of graphic dis play term inal in this exam ple).
Note: Steps 6, 7, 14 et 15 are nec es s a ry only if [MUL TIMOTORS/CO N F IG.] (MMC - ) function is us ed with
3 configurations or 3 m otors .

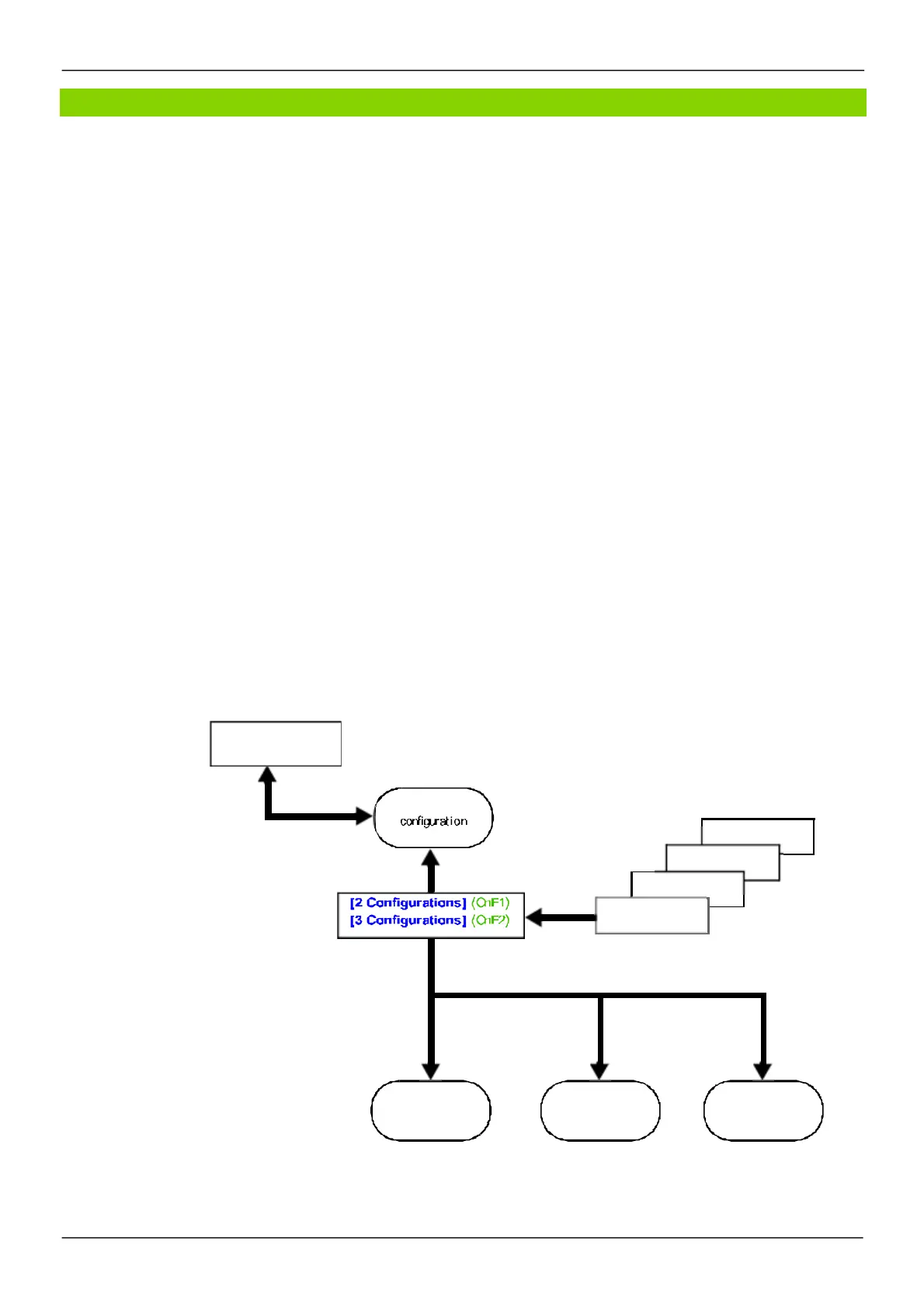

Parameters described in this page can be accessed by:
DRI- > CONF > FULL > FUN- > MMC-
Terminal
Current
Netw ork
Modbus
CANopen®
CnF1 = 0, CnF2 = 0
CnF1 = 1, CnF2 = 0
CnF1 = 0, CnF2 = 1
or
CnF1 = 1, CnF2 = 1
Configuration
0
or motor 0
Configuration 1
or motor 1
Configuration
2
or motor 2
Graphic display
terminal
