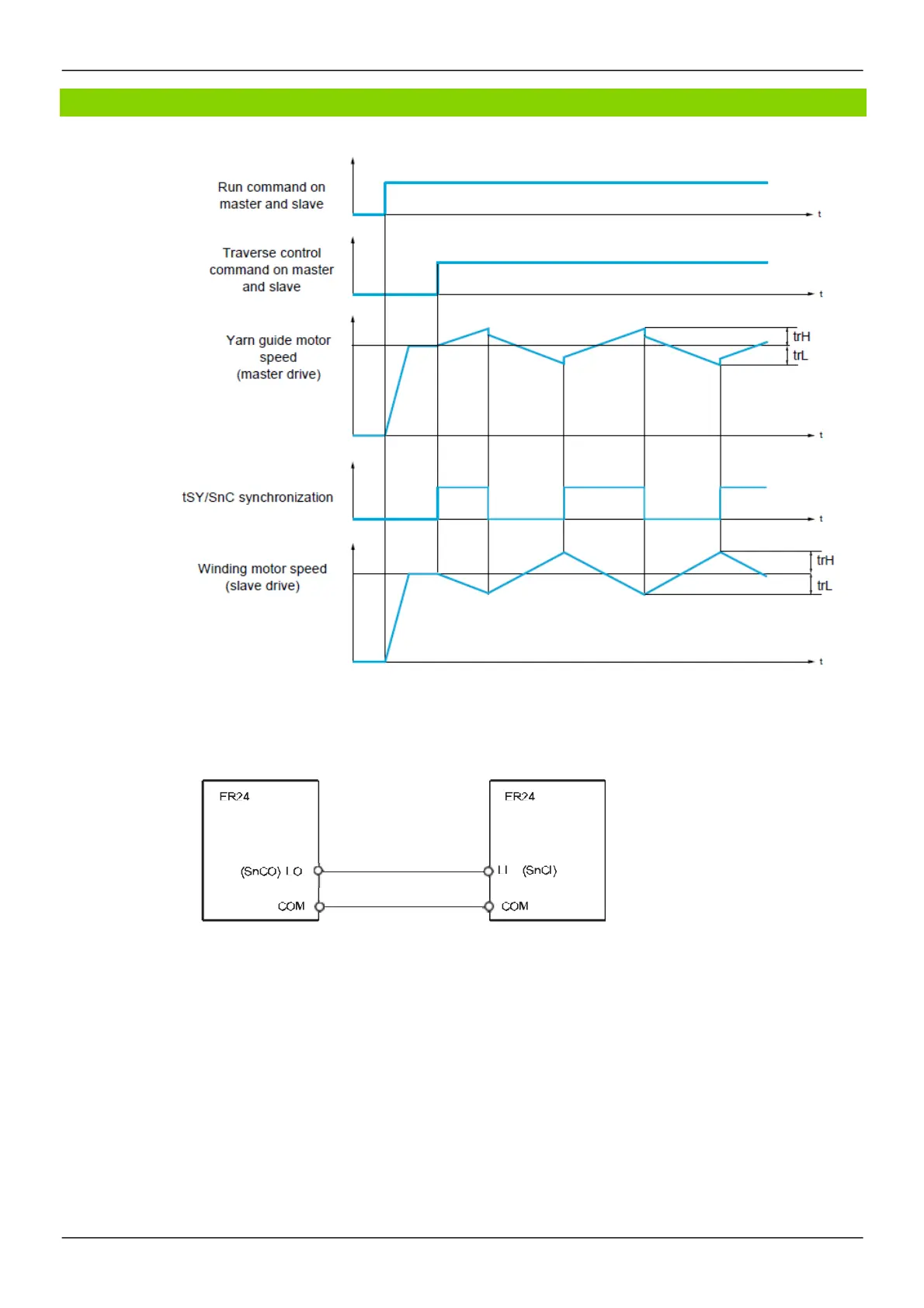

Configuration Mode (ConF)
Run command on
master and slave
t
Traverse control
command on master
and slave
t
Yarn guide motor
speed
(master drive)
trH
trL
t
tSY/SnC synchronization
Winding motor speed
(slave drive)
t
trH
trL
t
Connection of synchronization I/O
Master drive Slave drive
The starting conditions for the function are:
•
Bas e speeds reached on both drives
•
[Yarn control]
(trC)
input activated
•
Synchronization signal present
Note:
The
[Quick step High]
(qSH) and
[Quick step Low]
(qSL) param eters s hould generally be kept at 0.
Parameters described in this page can be accessed by:
DRI- > CONF > FULL > FUN- > TR0-
