About Menus, Dialog Boxes and Screens
Home Page
About Menus, Dialog Boxes and Screens
The following information describes the menus, dialog boxes and screens used in
the BradyPrinter S3100 Sign & Label Printer system.
Home Page

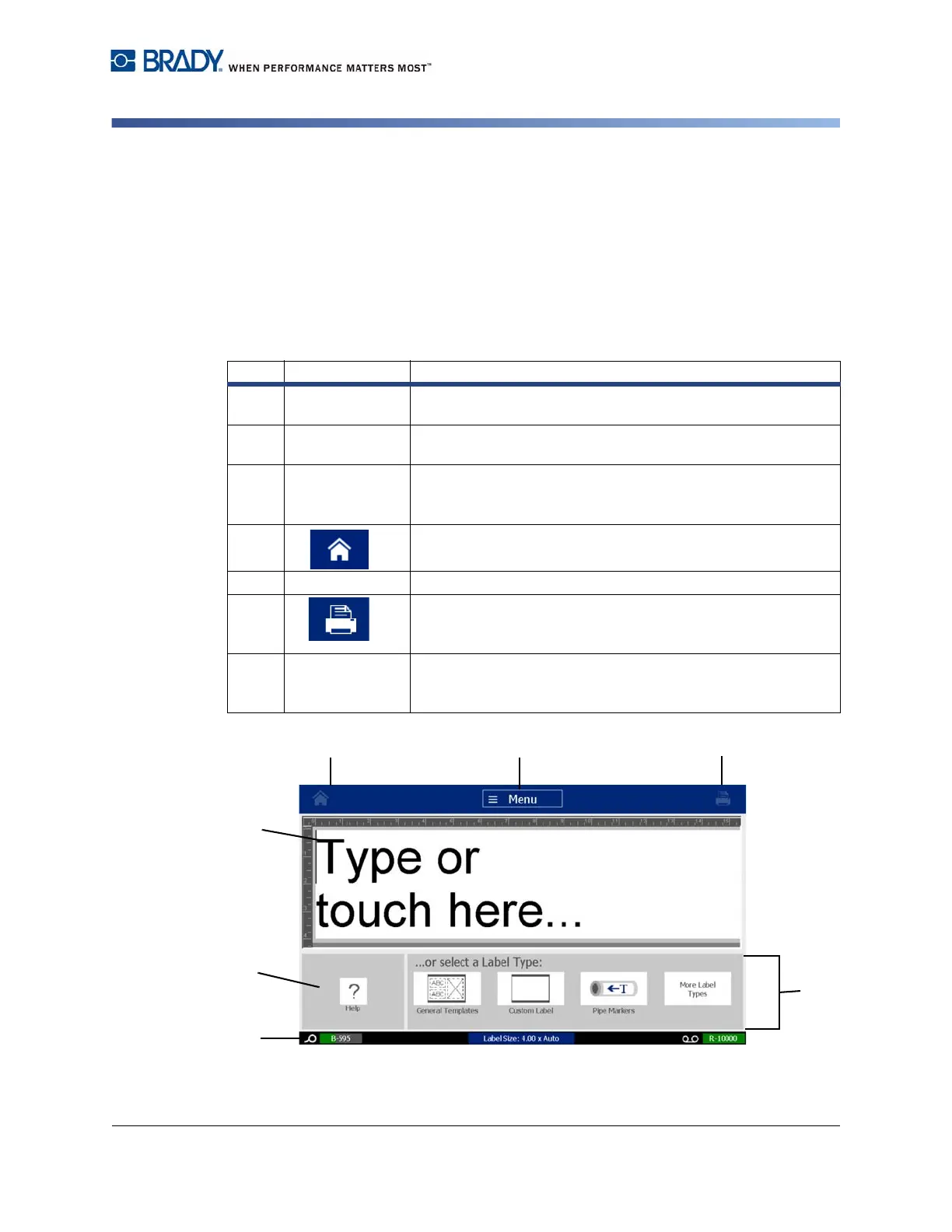

The Home page automatically displays when you first start the printer. The main
sections of the Home page are:
Item Description
1
Status Bar
Shows the current label size and indicators for the amount of
media and ribbon remaining.
2
Tools Panel
Depending on the option selected, provides buttons for
Object Sizing, Delete, Undo, Zoom In/Out, and Help.
3
Editor
Text or object entry area. Type, touch or select objects to
display and edit in this area. Shows color of installed media
and ribbon.
4
Home : Returns you to the Home page from anywhere in the
application. Button is greyed out on the Home page.
5
Menu Displays File, Label and System options.
6
Print : Displays the Print dialog box where you can choose
options for printing the current label. Not available unless an
object is in the Editor.
7
Control Panel
Primary area for selecting all of your options for creating,
editing and working with labels and objects. The panel
changes depending on what option is selected.
4
5
6
3
2
7
1

Brady BradyPrinter S3100 Specifications

General

Print Technology	Thermal Transfer
Resolution	300 dpi
Application	Industrial Labeling
Max Print Width	4 inches
Connectivity	USB, Ethernet
Display	Color touchscreen
Power Supply	100-240V AC, 50/60Hz
