7. Service Procedures (Undefined variable: MyVariables.ProductName)
Installing the Optional GIO Board Part Number: PF40-DI-00010 Rev. A

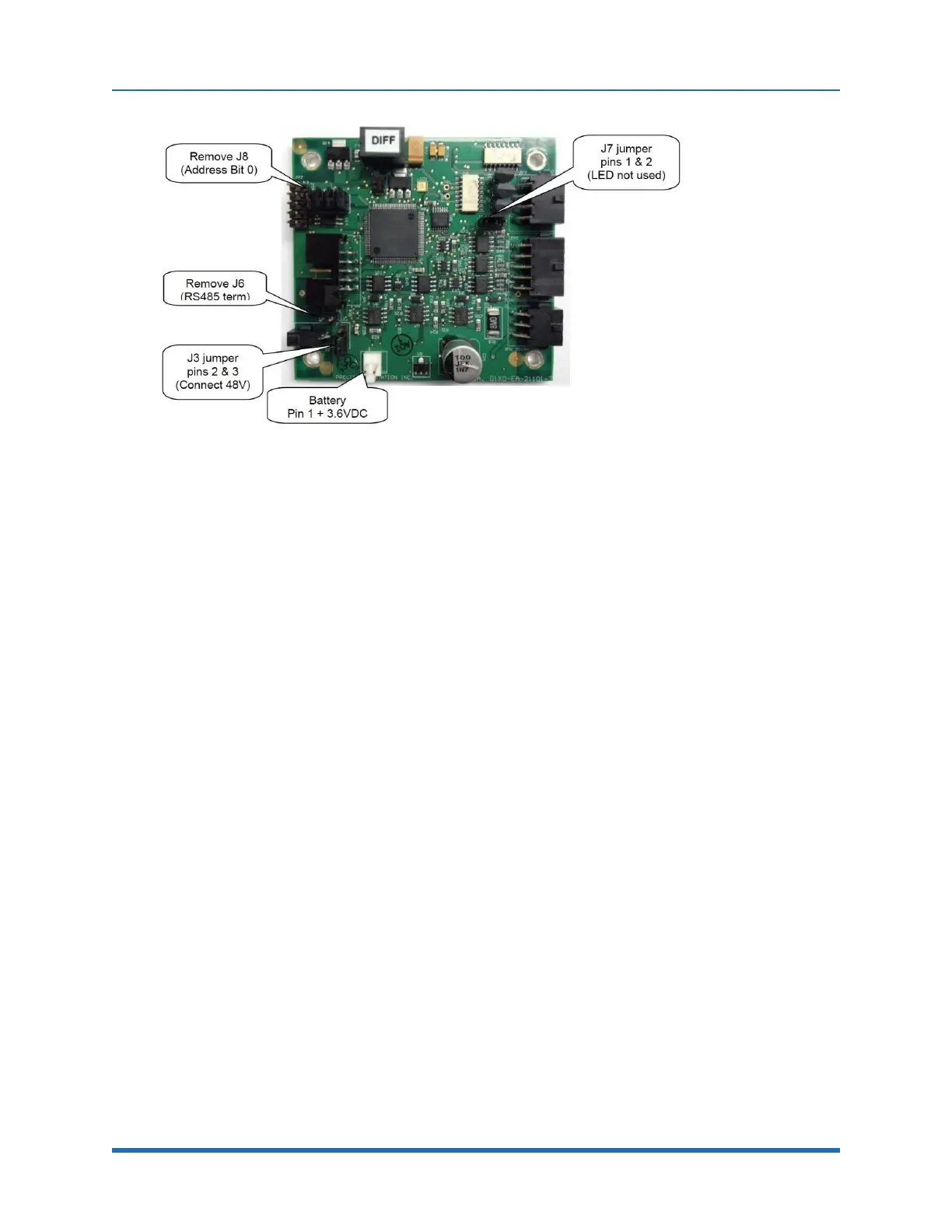

Figure 7-10: Linear Axis Controller Rev2 (GSB Revision 3)
Installing the Optional GIO Board
Brooks sells a digital IO board that provides 12 inputs and 8 outputs as an option. This board may
be installed either in the Z column of the robot for standalone PF400 robots, or in the Linear Axis
extrusion for robots with the Linear Axis option.
This board is provided with a 150 mm pigtail harness to a 25-pin Dsub connector. The board is
attached with (4) M3 X 10 mm SHCS and the 25-pin Dsub is attached with standard D-sub 4-40
mounting standoffs.
This board is typically installed at the factory, but can be installed in the field for robots shipped after
July 2012 which have the appropriate mounting holes.
Tools Required:
l
3 mm hex driver or hex L wrench
l
2.5 mm hex driver
l
M5 socket driver
l
M5 open end wrench
Spare Parts Required:
l
GIO Digital IO Board see “Spare Parts List”
To install the GIO Board in a robot without a linear axis, perform the following procedure:
127
Copyright © 2023, Brooks Automation
