Brooks Automation 4. Installation Information
Part Number: PF40-DI-00010 Rev. A System Dimensions

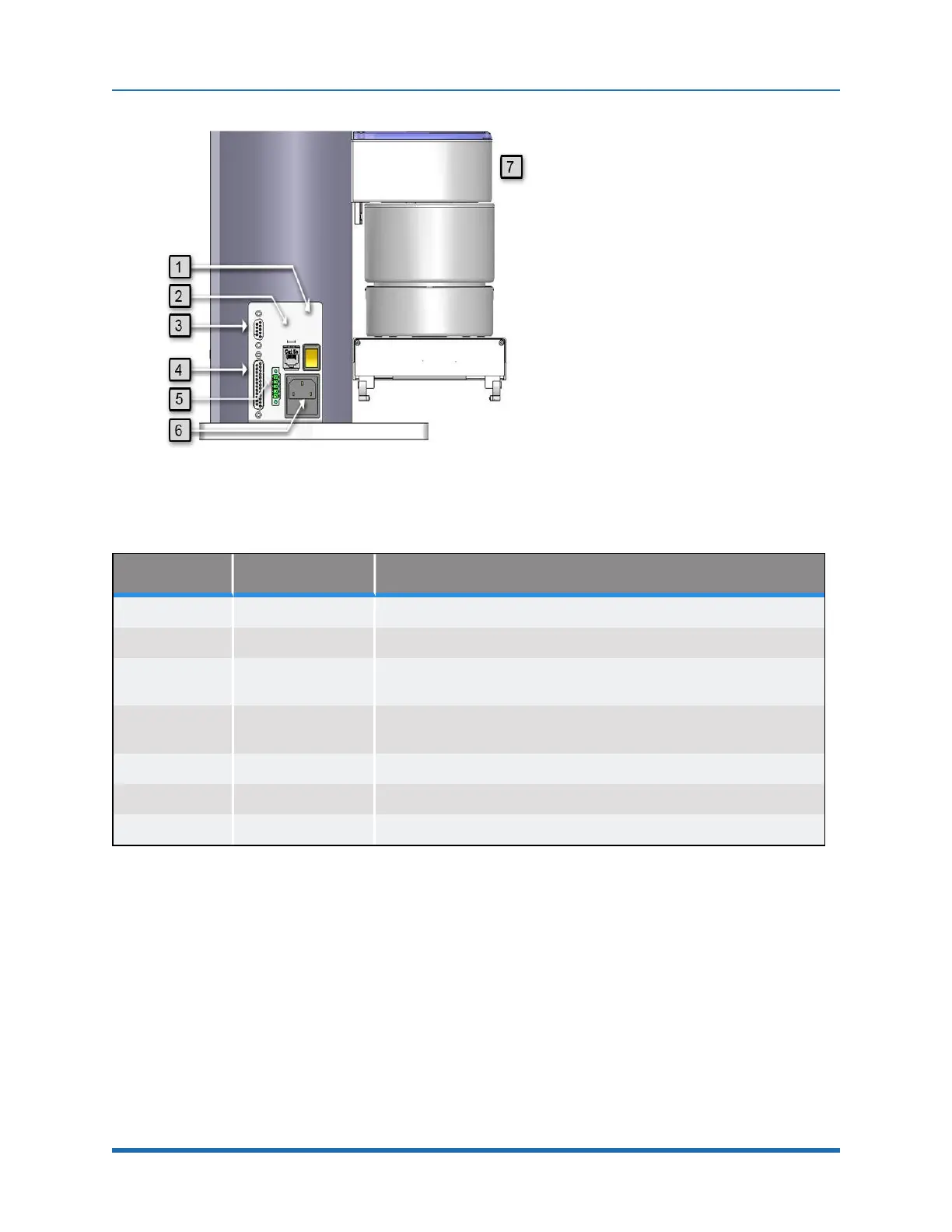

Figure 4-1: Facilities Panel
Annotation Name Description
1 Power Switch Lighted Power Switch
2 Ethernet Connector For Ethernet to Computer Cable
3
9 Pin D Sub
Connector
Contains RS-232 Serial Port, 24 VDC, Gnd Can be used for optional
teach pendant
4
25 Pin D Sub
Connector
For optional DIO module, 12 inputs, 8 outputs
5 E-Stop Connector E-Stop and Cell Interlock Signals
6 Power Entry Module For IEC plug. Contains dual fuse drawer.
7 Power Status Light Blinks to indicate power status
Table 4-1: Facilities Panel, Key
System Dimensions
Figure 4-2 shows top and right views. All dimensions are in millimeters.
Copyright © 2023, Brooks Automation
38
