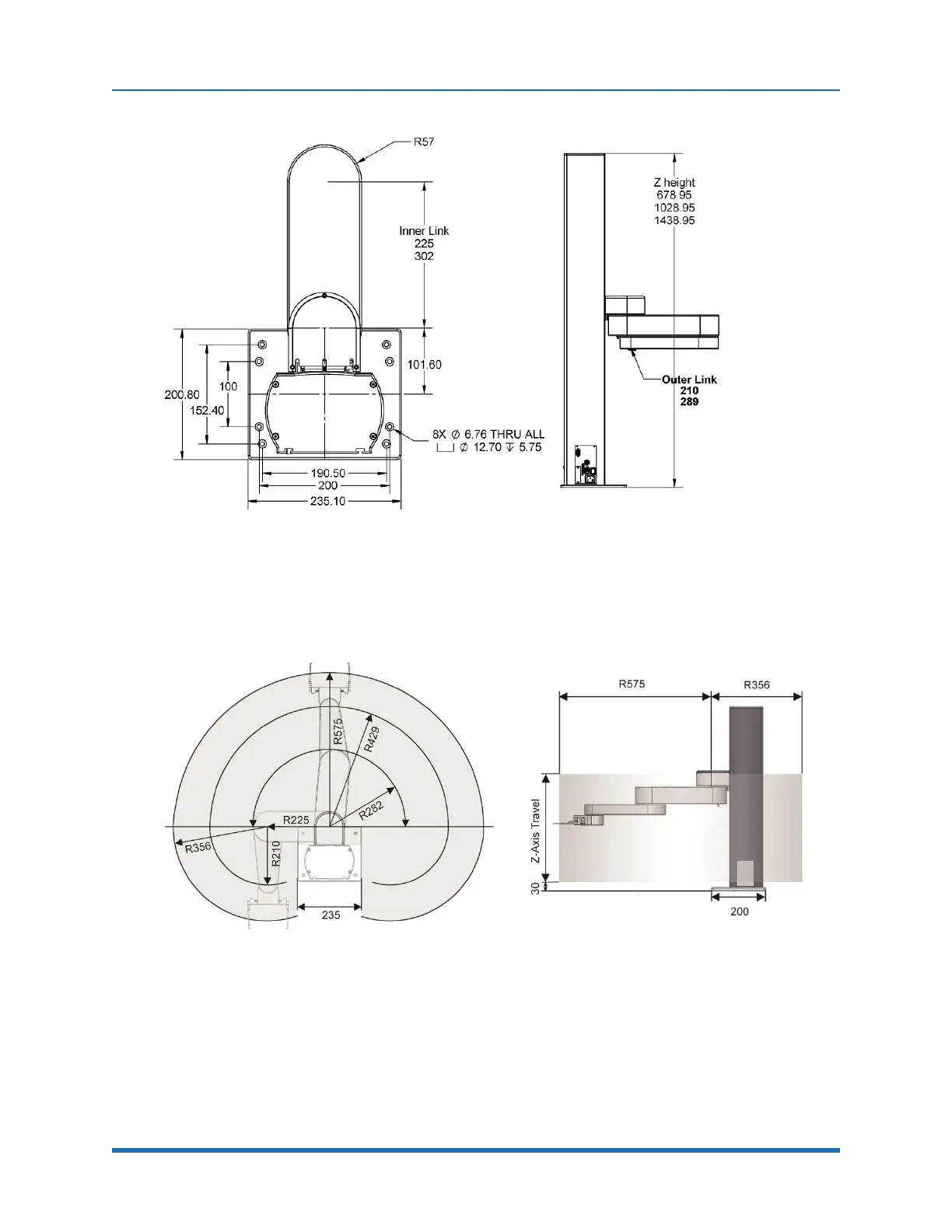

System Dimensions Part Number: PF40-DI-00010 Rev. A
Figure 4-2: System Dimensions
The Mounting Dimensions for PF400, Standard Reach, are shown in Figure 4-3 through Figure 4-7.
For XR robot, R575 increases to R731, and inner link length increases from 225 to 302 mm.
Figure 4-3: Working Volume
39
