Brother MFC-J6520DW

To Next Page

To Previous Page

3-12

Confidential

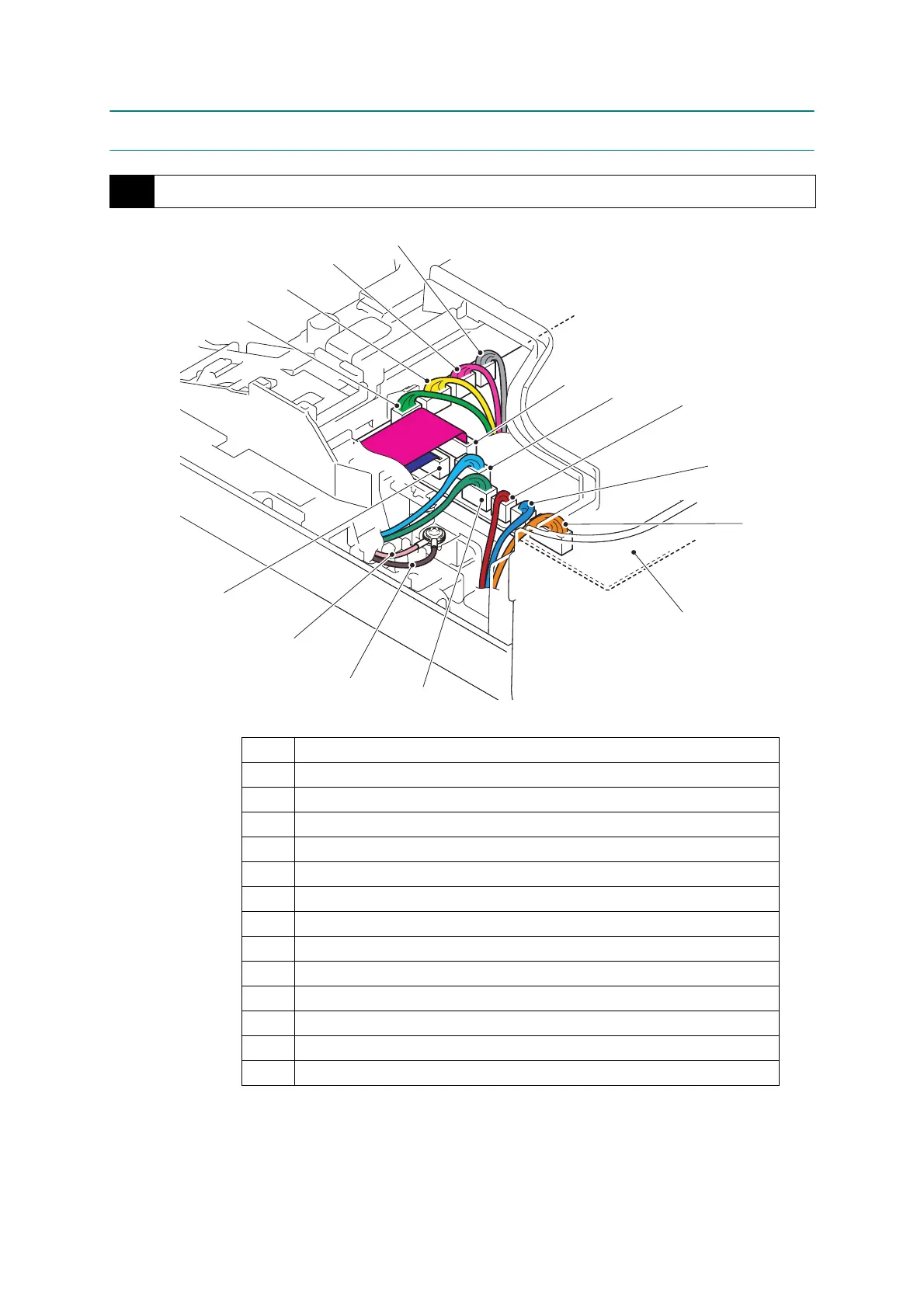

7 ROUTING OF HARNESSES AND INK SUPPLY TUBES

1 Main PCB ASSY

No. Harness name

1 ADF cover sensor harness

2 First side document scanning position sensor harness

3 Document detection sensor/Document width sensor harness

4 Second side document scanning position sensor harness

5 Scanner motor harness

6 ADF motor harness

7 FB FG wire

8 First side CIS flat cable

9 Second side CIS flat cable

10 Carriage motor harness

11 Paper feed motor harness

12 Power supply harness

13 ADF FG wire

Main PCB ASSY
