Brother MFC-J6520DW

3-74
Confidential
9.24 Inner Media Cover

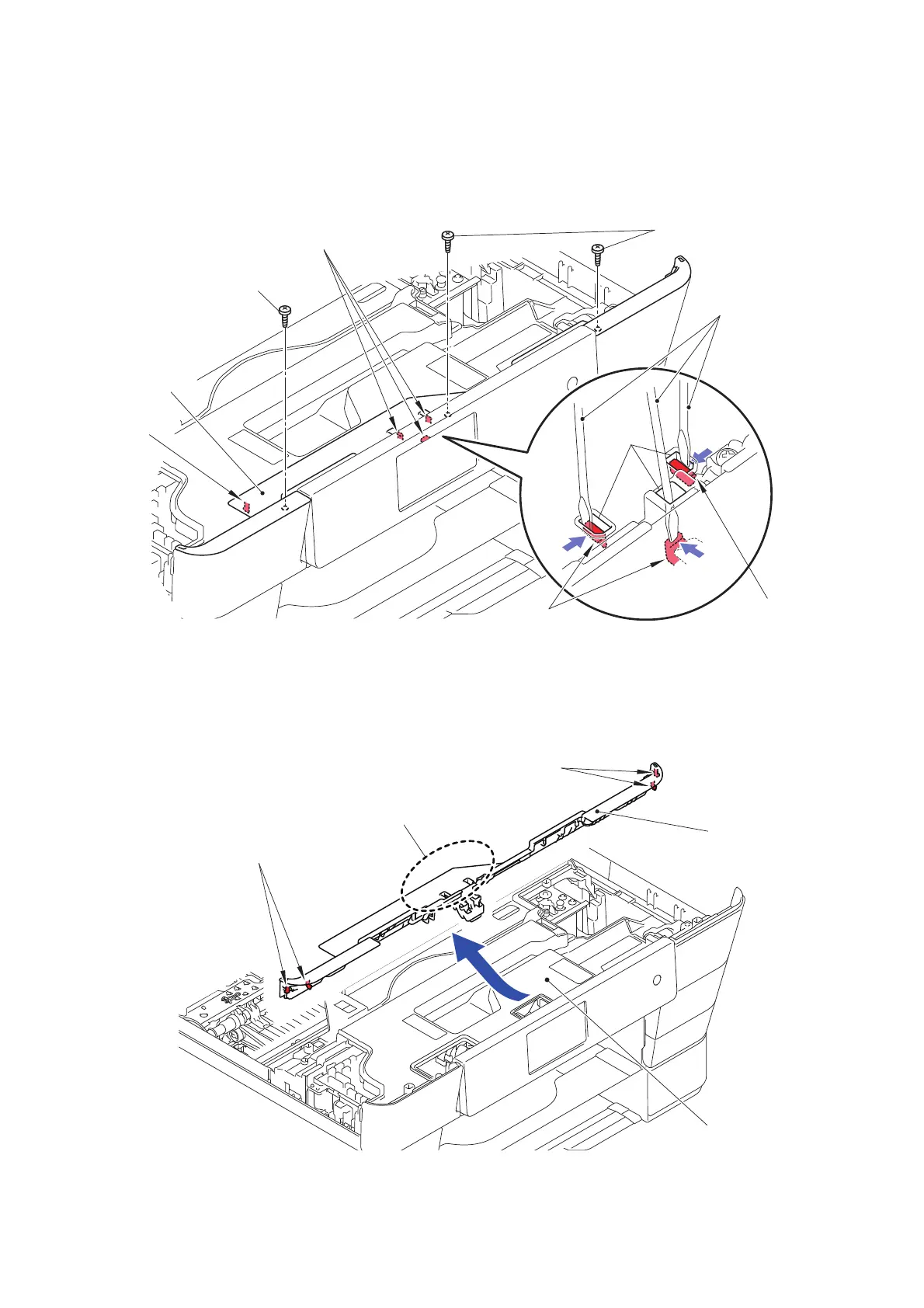

(1) Remove the three screws (TAPTITE BIND B M4x12) from the Panel holder.
(2) Insert a flat screwdriver into the three Holes, release the three Hooks at the center.
(3) Release the one Hook on the left as well.
Fig. 3-77
(4) Hold the section “A” and remove the Panel holder from the Upper cover in the
direction of the arrow.
Fig. 3-78
Hooks
TAPTITE BIND B M4x12
TAPTITE BIND B M4x12
Hook
Hook
Hooks
Flat screwdriver
Panel holder
Holes
Panel holder
Hooks
Hooks
Upper cover
“A”
