Brother MFC-J6520DW

To Next Page

To Previous Page

3-83

Confidential

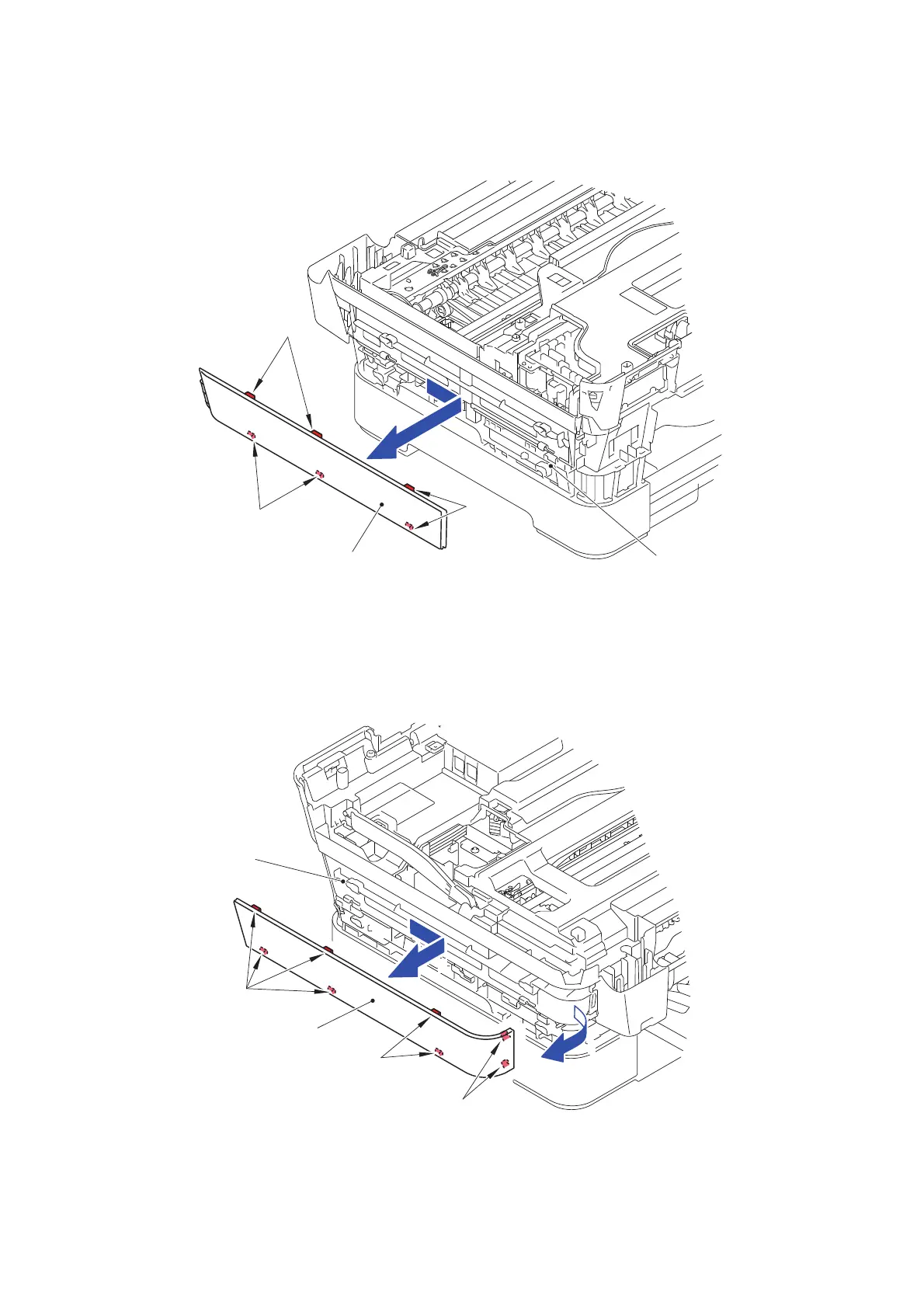

9.33 Upper Side Cover L

(1) Slide off the Upper side cover L in the direction of the arrow.

Fig. 3-94

9.34 Upper Side Cover R

(1) Release the two Hooks at the rear side of the Upper side cover R.

(2) Slide off the Upper side cover R in the direction of the arrow.

Fig. 3-95

Hooks

Upper side cover L

<Rear>

<Front>

Lower cover

Hooks

Upper side cover R

<Rear>

<Front>

Lower cover
