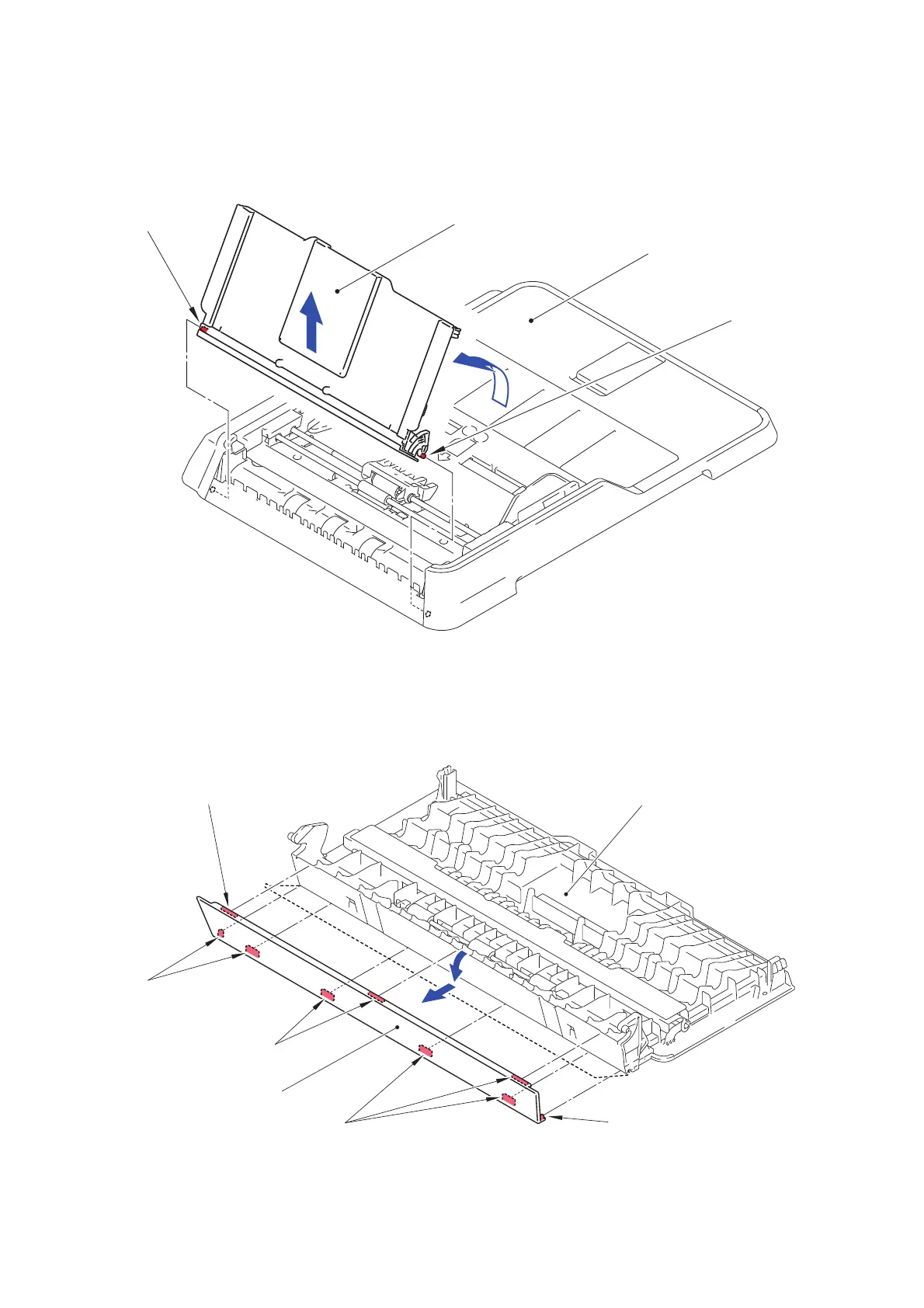

9.10 ADF Cover ASSY and ADF Cover Side Cover

(1) Open the ADF cover ASSY.

(2) Release the two Bosses and remove the ADF cover ASSY from the ADF unit.

Fig. 3-43

(3) Release the nine Hooks and remove the ADF cover side cover from the ADF cover

ASSY.

Fig. 3-44

Boss

ADF cover ASSY

ADF unit

Hooks

Hook

ADF cover side cover

ADF cover ASSY
