Brother MFC-J6520DW

To Next Page

To Previous Page

3-86

Confidential

9.37 Wireless LAN PCB ASSY

(1) Remove the Wireless LAN PCB ASSY from the Connector of the Main PCB ASSY.

(2) Remove the Gasket from the Wireless LAN PCB ASSY.

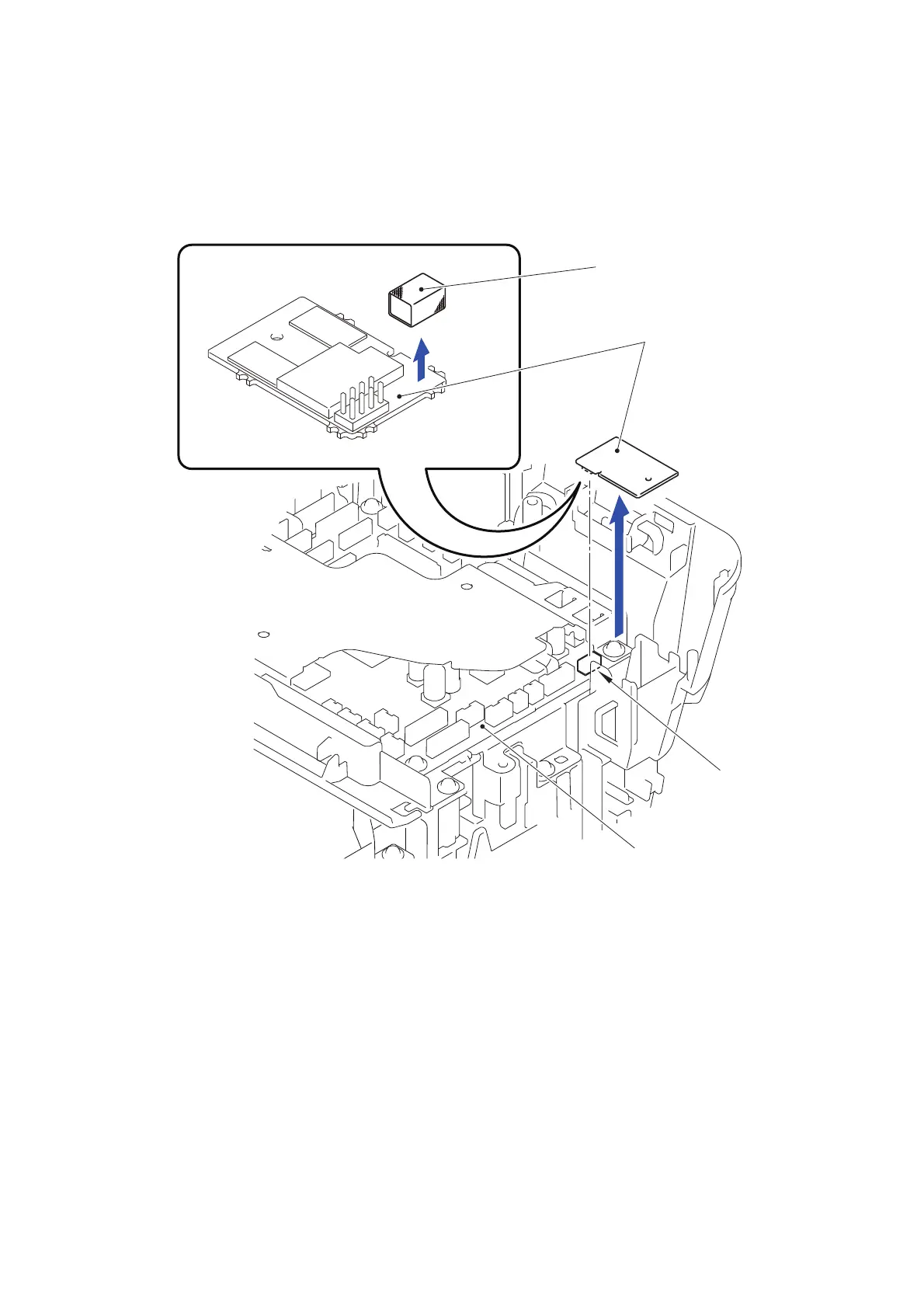

Fig. 3-98

Assembling Note: Make sure to attach the gasket on wireless LAN PCB ASSY.

Wireless LAN PCB ASSY

Main PCB ASSY

Gasket

Connector

<Front>

<Rear>
