9.29 NFC PCB

(1) Release the three Hooks and remove the NFC PCB from the Panel upper cover.

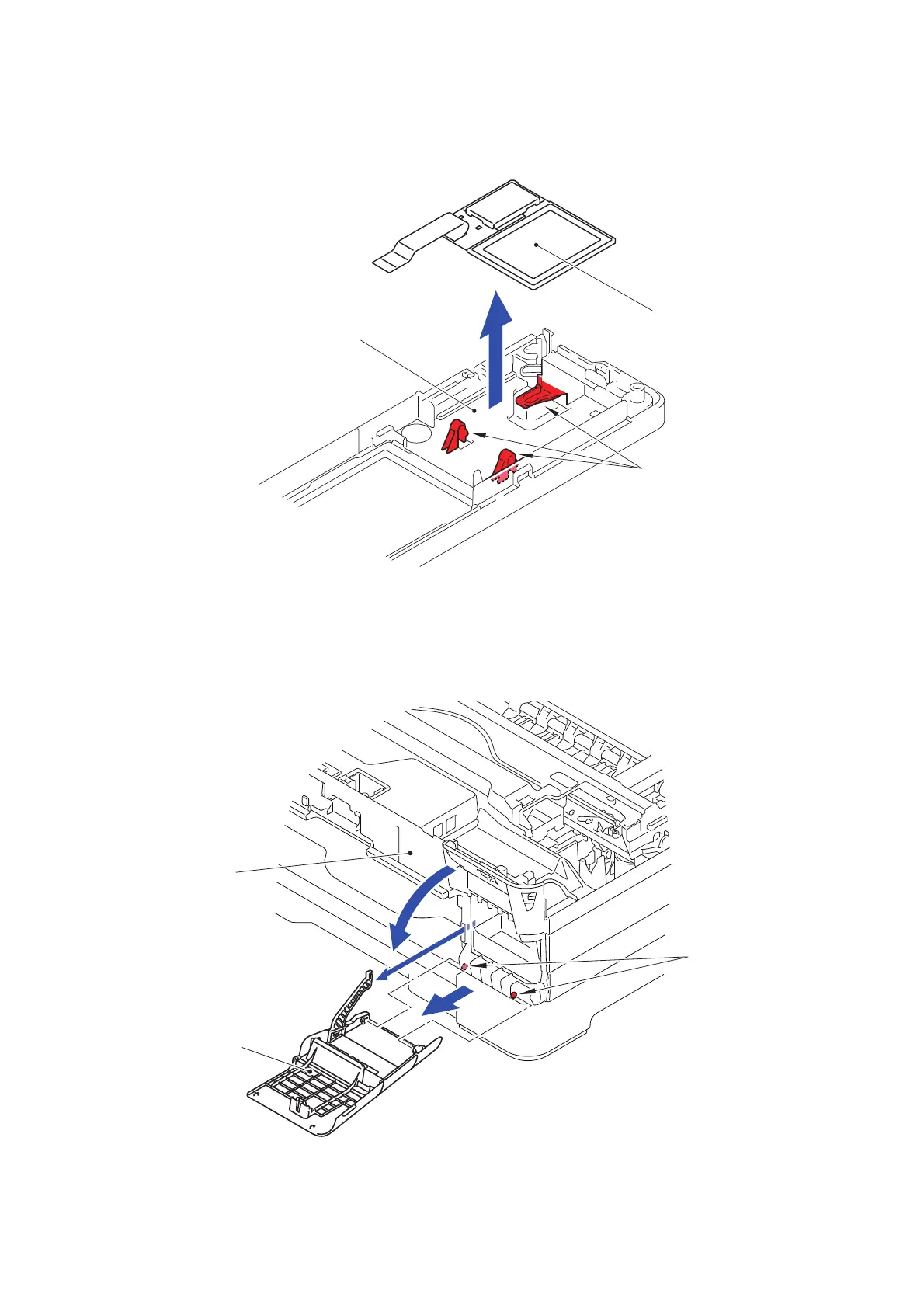

Fig. 3-90

9.30 Ink Cartridge Cover

(1) Open the Ink cartridge cover.

(2) Release the two Bosses and remove the Ink cartridge cover.

Fig. 3-91

Hooks

NFC PCB

Panel upper cover

Bosses

Ink cartridge cover

Machine body
