9.27 LCD

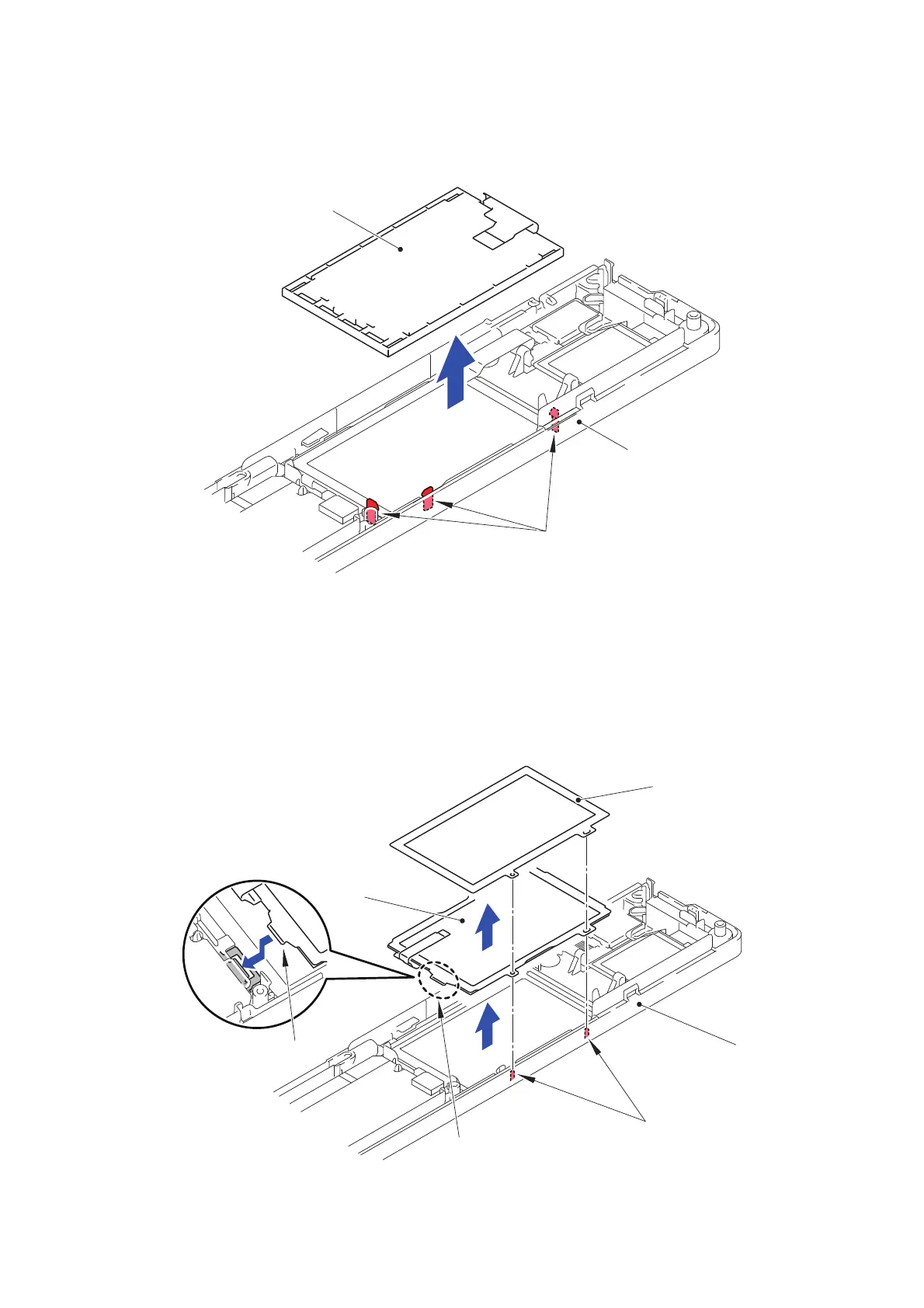

(1) Release the three Hooks and remove the LCD from the Panel upper cover.
Fig. 3-88
9.28 Touch Panel ASSY
(1) Remove the LCD frame sheet from the Panel upper cover.
(2) Remove the Touch panel ASSY from the Panel upper cover.
Assembling Note: When mounting the Touch panel ASSY, mount the section “A” of
the Touch panel ASSY as shown in the figure below.
Fig. 3-89
Hooks
Panel upper cover
LCD
LCD frame sheet
Panel upper cover
Touch panel ASSY
1
2
Bosses
“A”
“A”
