9.16 ADF Separation Pad

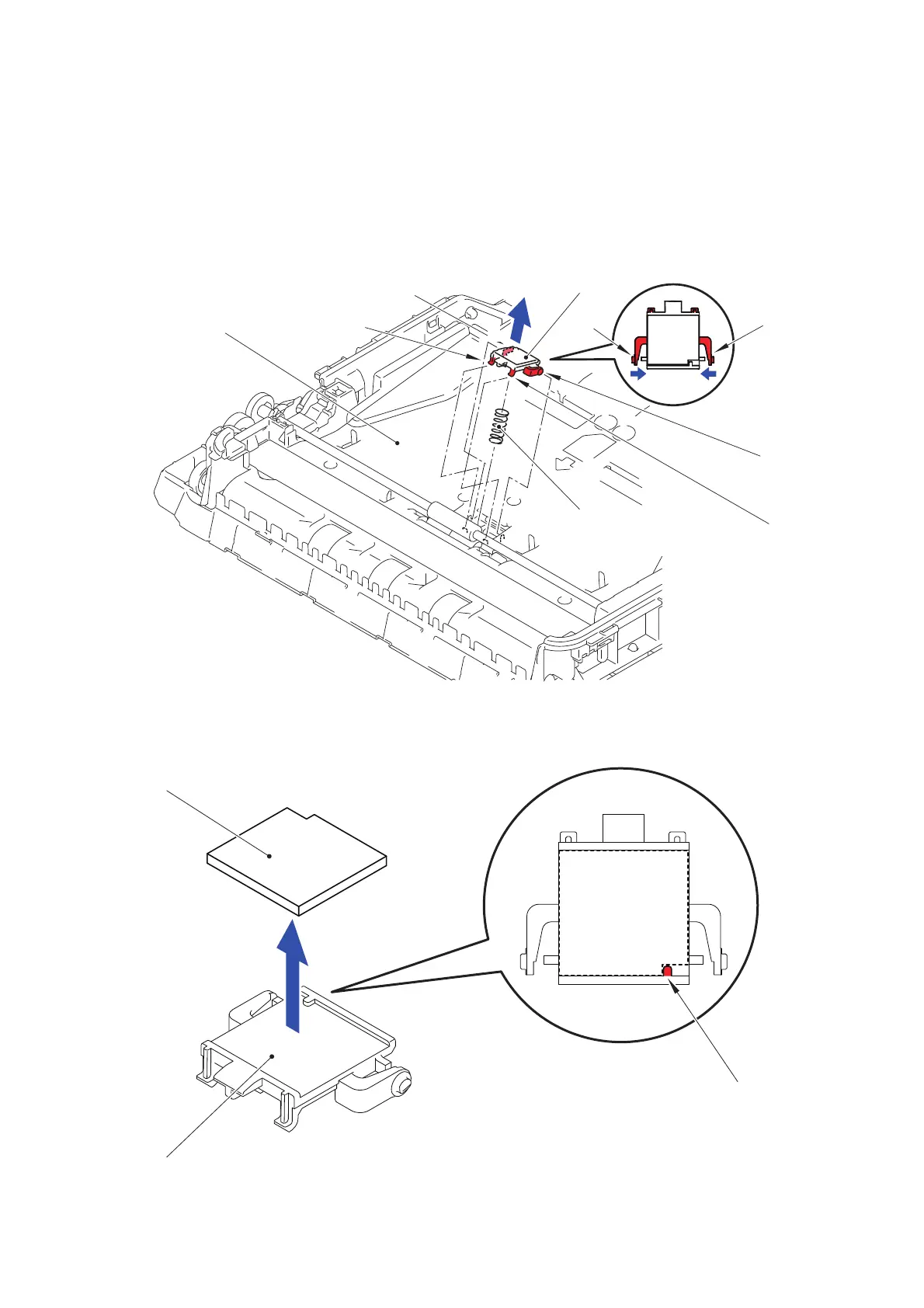

(1) Release the two Hooks of the ADF separation pad holder from the Upper

document chute.

(2) Remove the two Pins and remove the ADF separation pad holder from the Upper

document chute.

Note: When removing the ADF separation pad holder, be careful not to lose the ADF

separation pad spring.

Fig. 3-52

(3) Peel off the ADF separation pad which is secured with Double-sided adhesive tape

from the ADF separation pad holder.

Fig. 3-53

ADF separation pad holder

Hook

HookUpper document chute

ADF separation

pad spring

PinPin

ADF separation pad

ADF separation pad holder

Guide
