3-52

Confidential

9.9 ADF Document Support

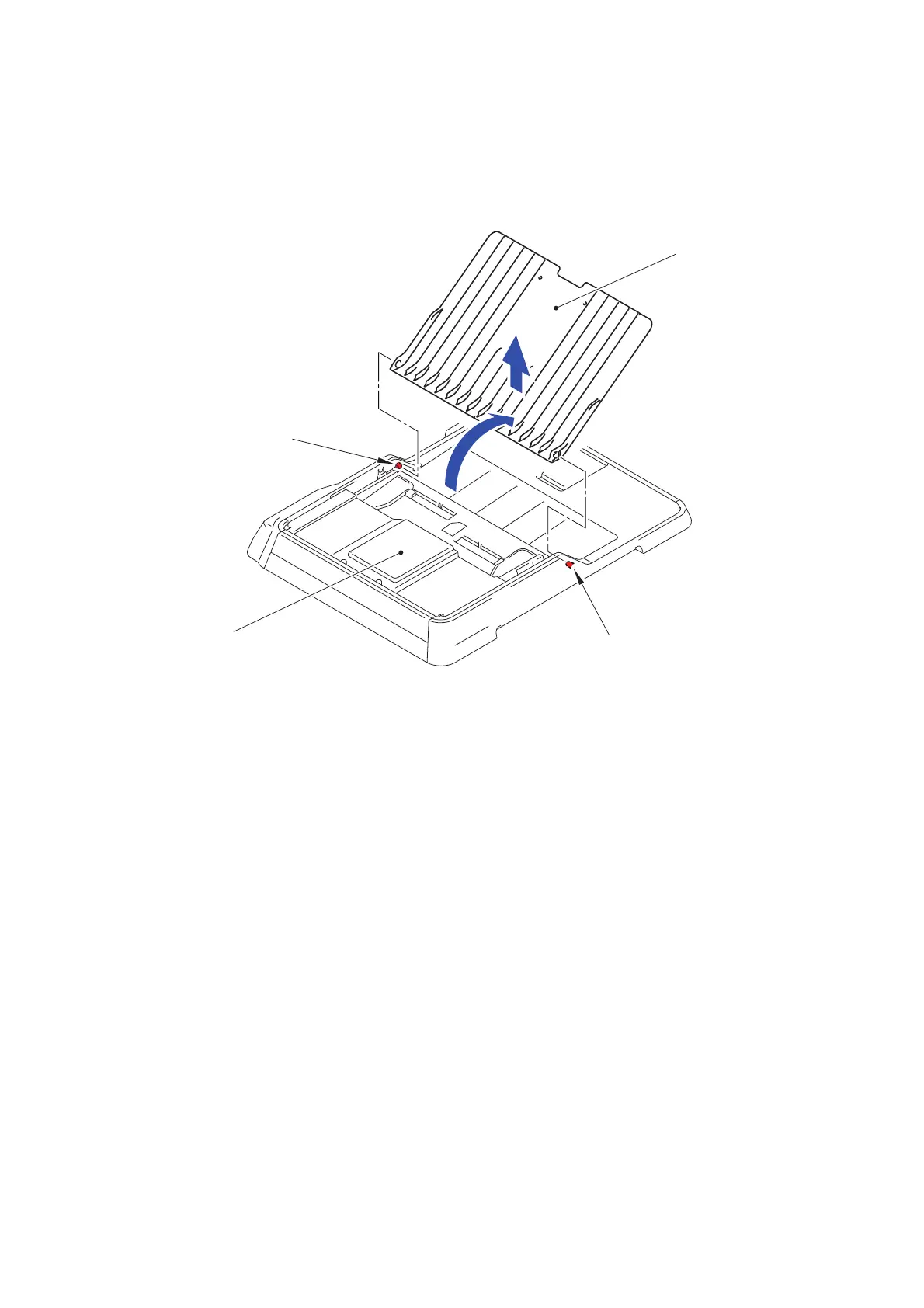

(1) Open the ADF document support.

(2) Release the two Bosses on the ADF unit and remove the ADF document support

from the ADF unit.

Fig. 3-42

Boss

Boss

ADF document support

ADF unit
