Brother MFC-J6520DW

To Next Page

To Previous Page

3-55

Confidential

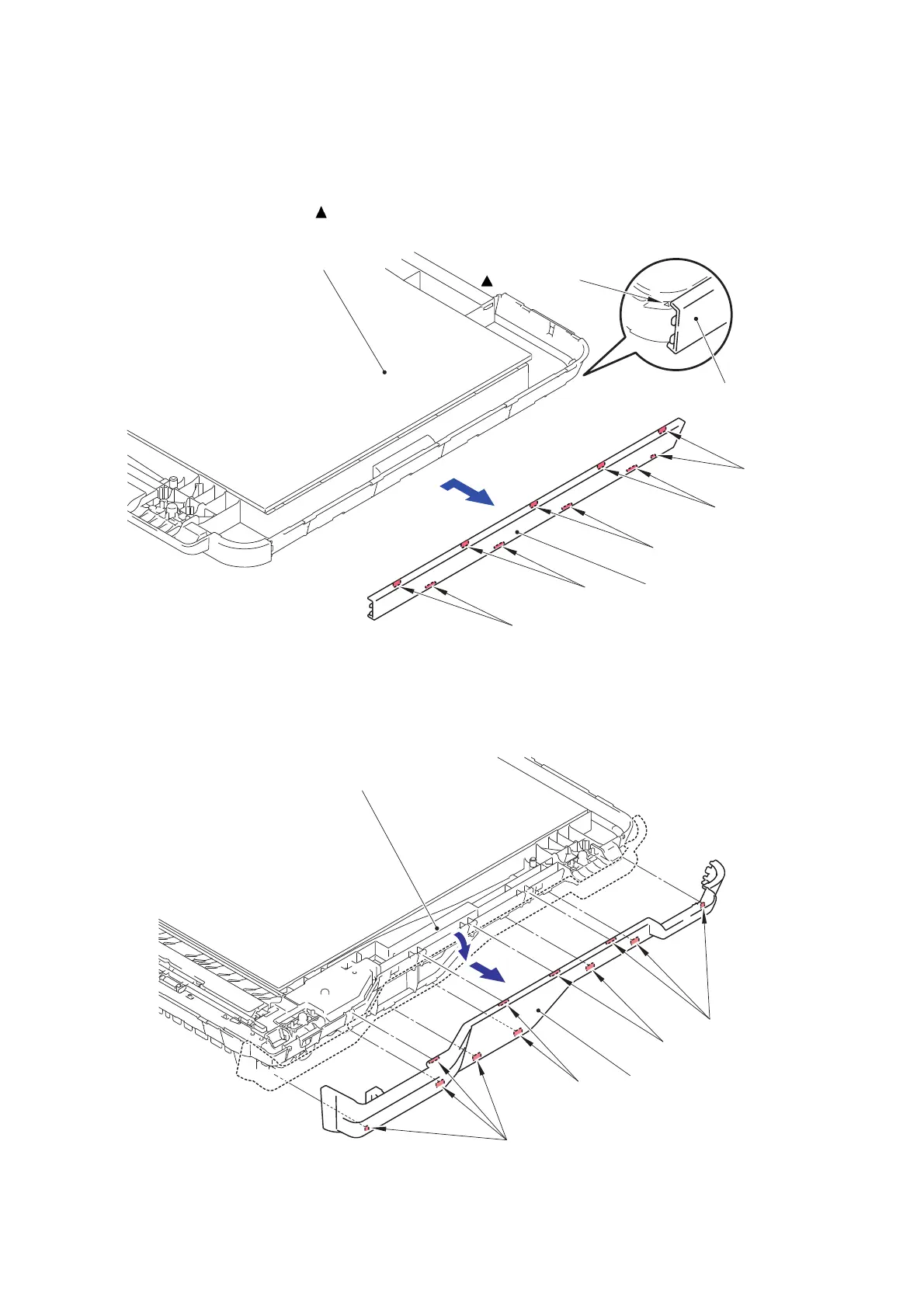

9.13 ADF Side Cover R

(1) Release the ten Hooks, slide the ADF side cover R in the direction of the arrow,

and remove the ADF side cover R from the ADF unit.

Assembling Note: Mount the ADF side cover R to the ADF unit by aligning the

-marked point with the end of the ADF side cover R.

Fig. 3-47

9.14 ADF Back Cover

(1) Release the eleven Hooks and remove the ADF back cover from the ADF unit.

Fig. 3-48

ADF unit

Hooks

ADF side cover R

-marked point

Hooks

ADF unit

ADF back cover
