Brother MFC-J6520DW

To Next Page

To Previous Page

3-128

Confidential

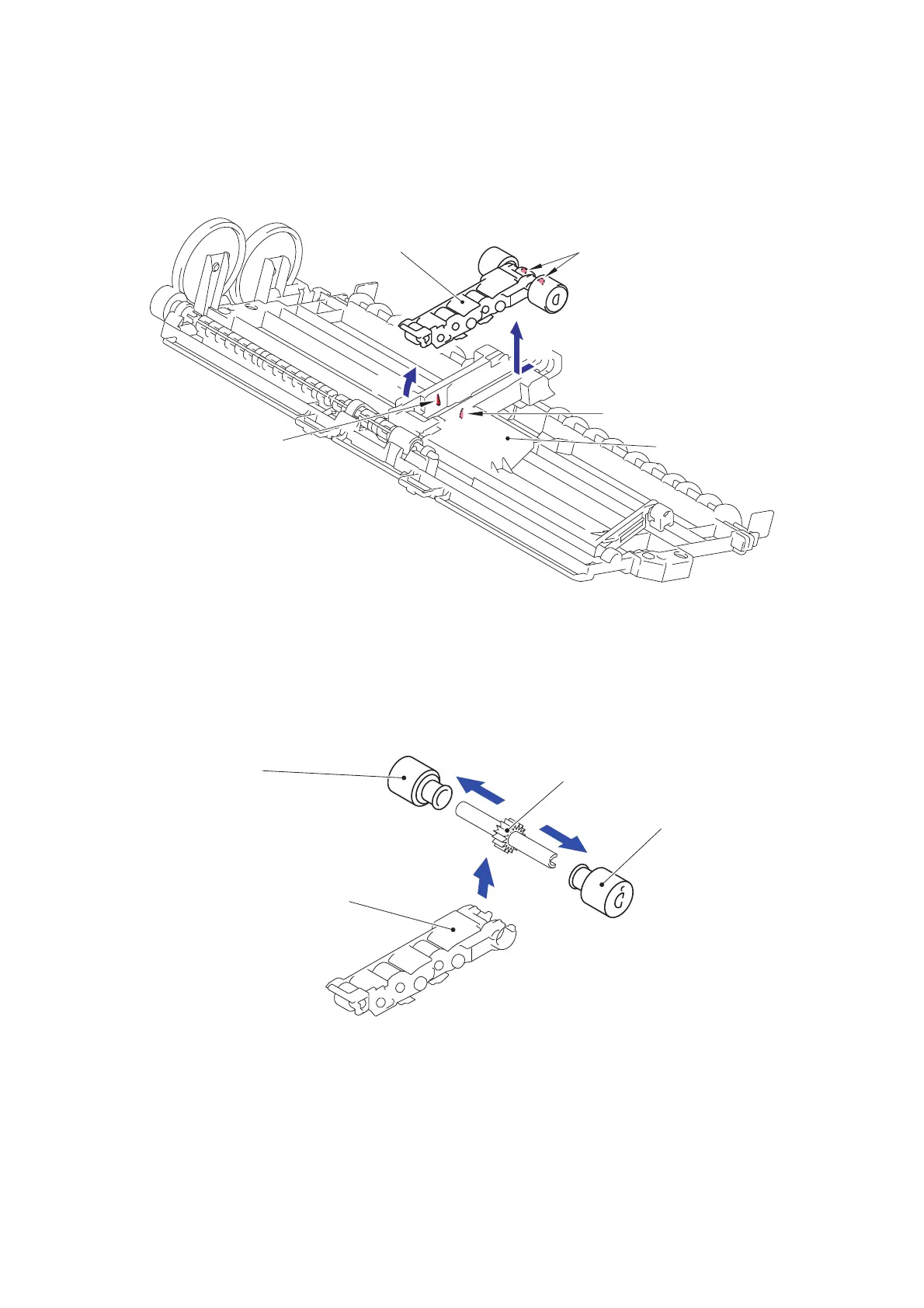

9.64 T2 Paper Pull-in Roller

(1) Release the four Hooks and remove the Paper pull-in roller holder from the Lower

tray frame.

Fig. 3-156

(2) Remove the two T2 paper pull-in rollers and ASF gear from the Paper pull-in roller

holder.

(3) Remove the two T2 paper pull-in rollers from the ASF gear.

Fig. 3-157

Hooks

Paper pull-in

Lower tray frame

roller holder

Hook

ASF gear

Paper pull-in roller holder

T2 paper pull-in roller
