9.57 Paper Feed Roller

(1) Turn the Bushing in the direction of the arrow 1 to unlock it.

(2) Turn the Bushing in the direction of the arrow 2 to unlock it.

(3) Remove the Paper feed roller.

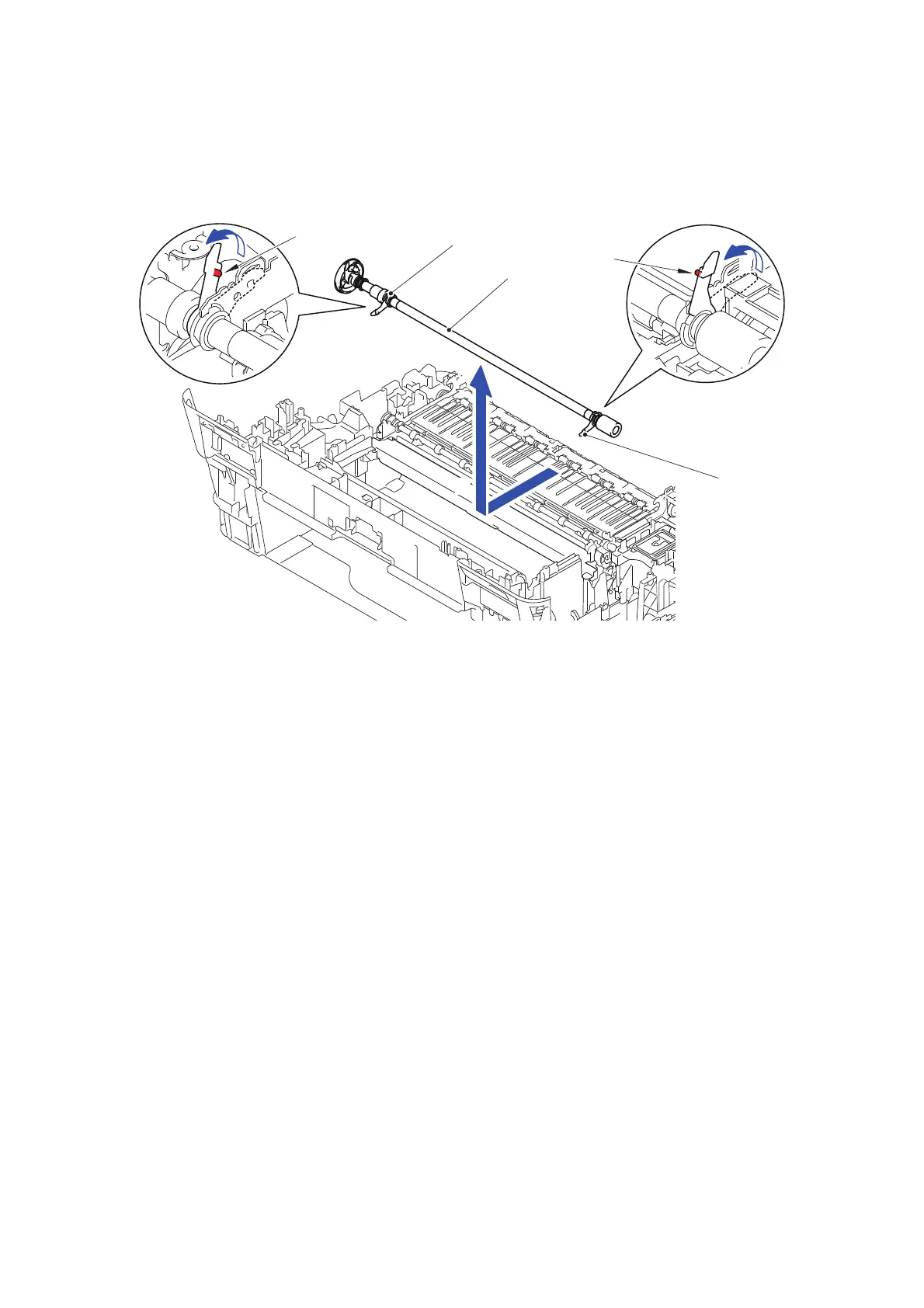

Fig. 3-139

Bushing

Paper feed roller

Lock

Lock

1

3

Bushing

2
