9.56 Paper Feed Motor

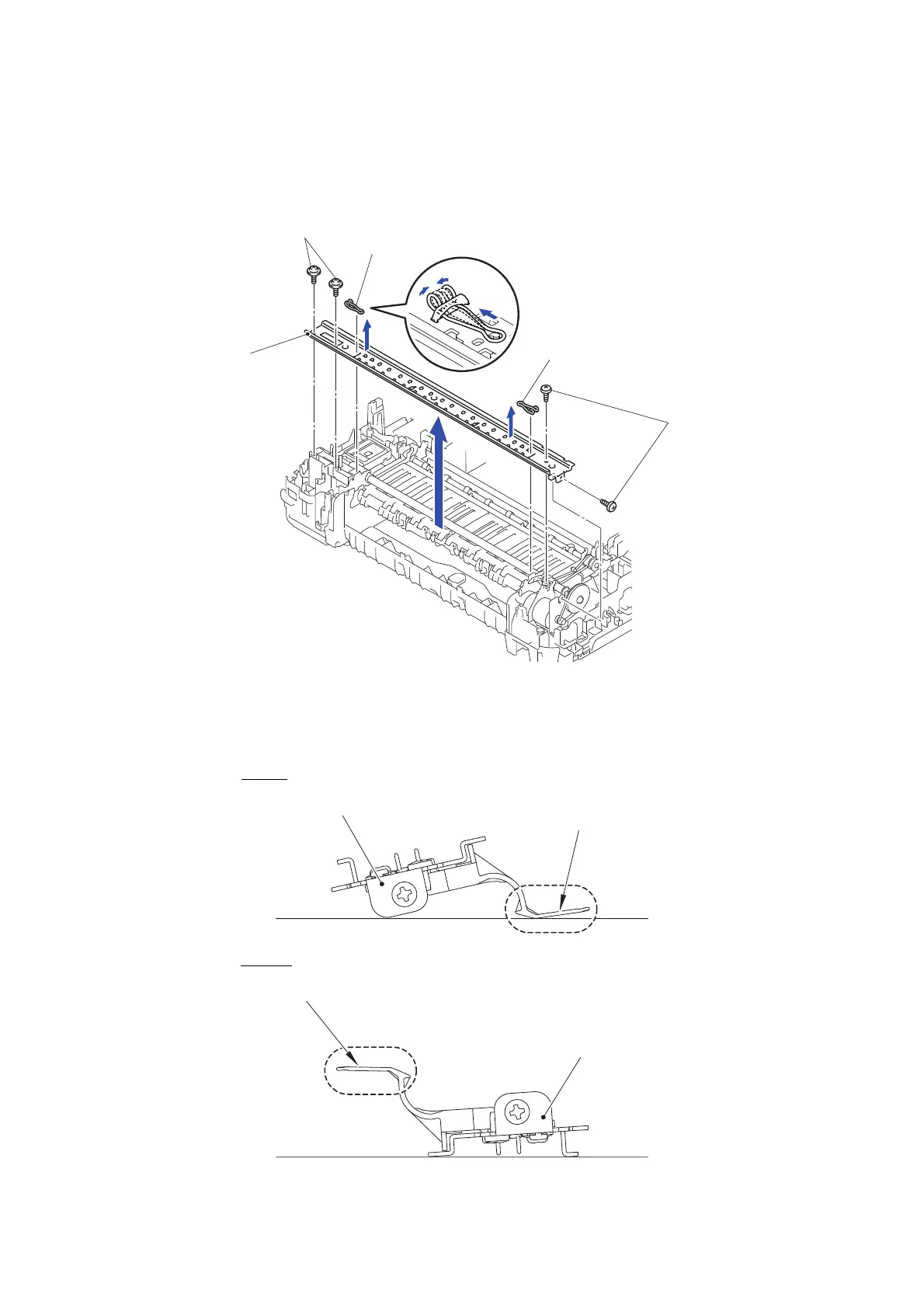

(1) Remove the two screws (SCREW BIND M3x6) from the CR guide rail.

(2) Remove the two screws (TAPTITE CUP B M3x10) from the CR guide rail.

(3) Remove the two CR guide rail springs and remove the CR guide rail.

Fig. 3-135

Note: Do not place the removed CR guide rail with the Recording paper holder down.

Fig. 3-136

SCREW BIND M3x6

TAPTITE CUP B M3x10

CR guide rail

CR guide rail spring

<Front>

<Rear>

Recording paper holder

CR guide rail

Wrong

Correct
