Brother MFC-J6520DW

To Next Page

To Previous Page

3-59

Confidential

9.17 Second Side CIS Unit

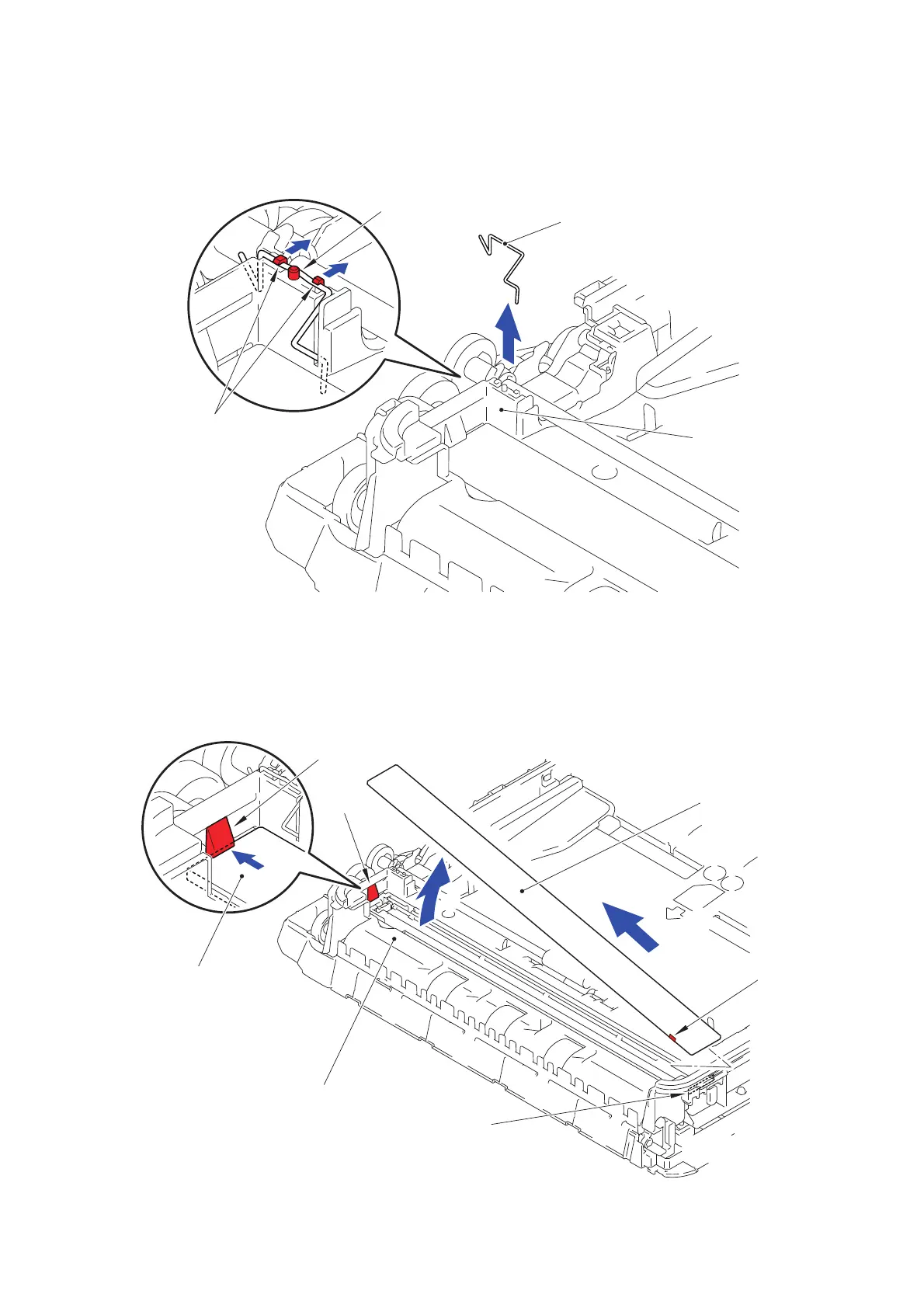

(1) Release the two Hooks on the Upper document chute and remove the ADF earth

spring from the Upper document chute.

Fig. 3-54

(2) Release the Hook on the Upper document chute and remove the CIS glass from

the Upper document chute.

Assembling Note: Mount the CIS glass to the Upper document chute in the mounting

direction so that the color mark point of the CIS glass comes to the

position shown in the figure.

Fig. 3-55

Hooks

ADF earth spring

Upper document

chute

Boss

Upper document chute

CIS glass

Hole

Color

Hook

mark
