3-102
Confidential
9.48 CR Encoder Strip
(1) Release the CR encoder strip from the Encoder strip spring.
(2) Remove the CR encoder strip from the CR frame ASSY.
Note: Take care not to scratch the CR encoder strip. If it is stained or scratched,
replace it with a new one.
Assembling Note: Set the CR encoder strip so that the -marked point comes to the
position shown in the figure.

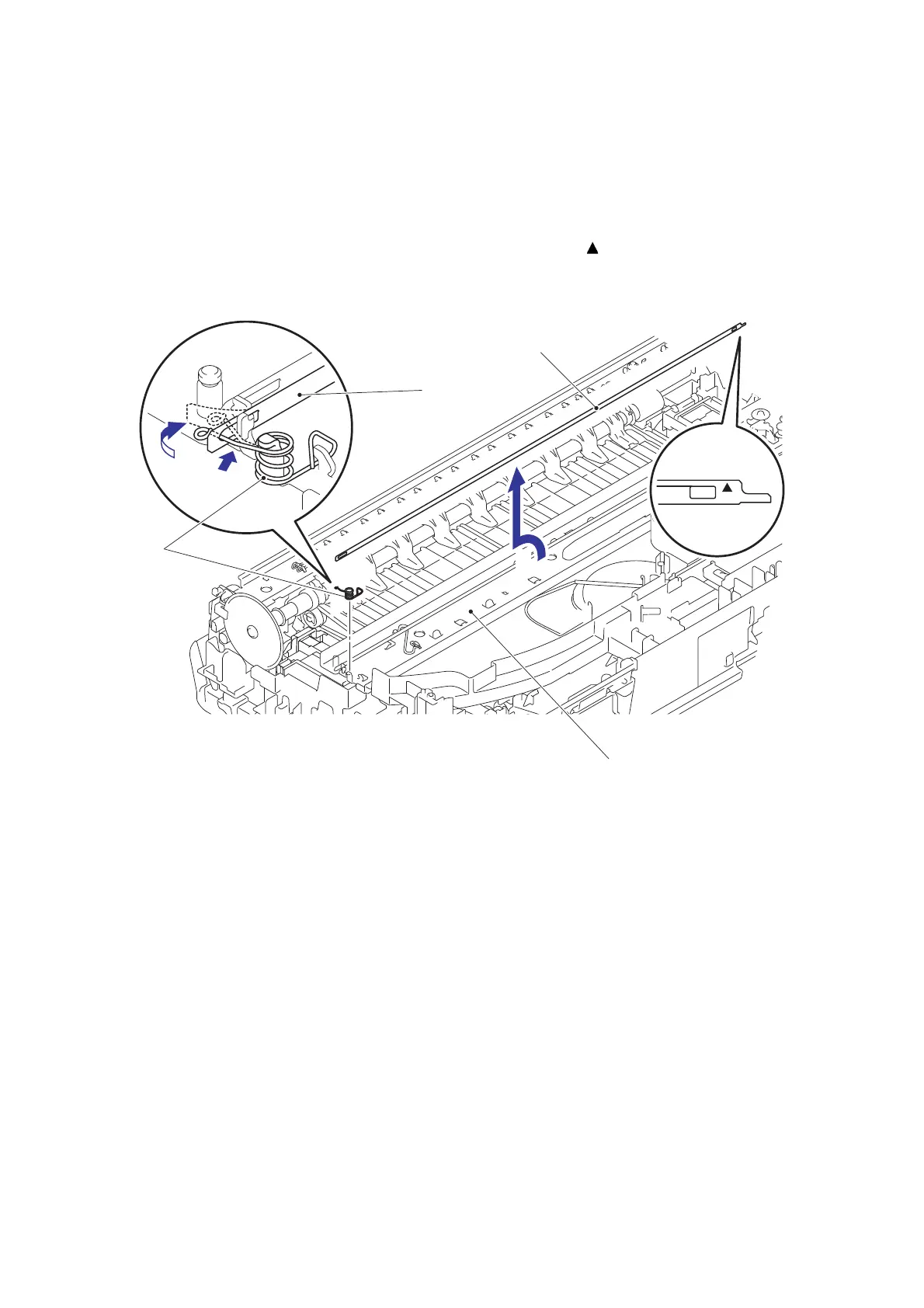

Fig. 3-119
Encoder
strip
CR encoder strip
CR encoder strip
1a
1b
2
CR frame ASSY
<Front>
<Rear>
spring
To Next Page
