Brother MFC-J6520DW Service Manual

3-129
Confidential
9.65 Base Pad
(1) Peel off the Base pad from the Paper tray 1.
Note: Once removed, the base pad will become unusable and a new pad will have to
be put back in.

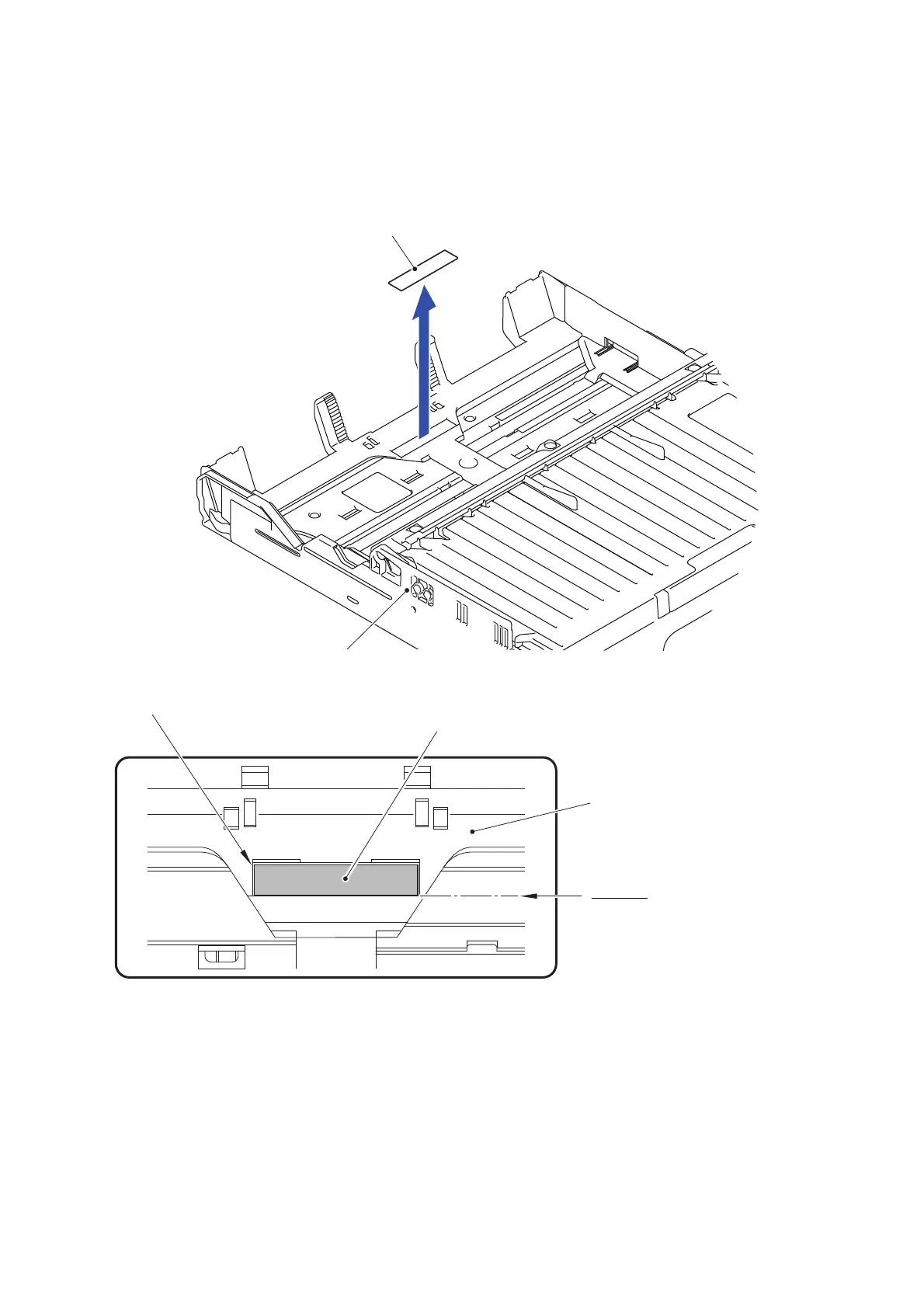

Fig. 3-158
Assembling Note: When attaching a new Base pad to the paper tray, align the front
edge of the pad with that of the depressed section on the paper
tray 1 and center the pad widthways as shown above.
(2) Peel off the Base pad of the Paper tray 2 in the same way.
Base pad
Paper tray 1
Base pad
Paper tray 1
Align the edge of the base pad with the
front edge
of the depressed section
on the paper tray 1.
Depressed section

Brother MFC-J6520DW Specifications

General

Type	all in one
Color	gray
Tray Capacity	250
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 250 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Maximum Number of Pages Per Month	up to 25, 000
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	yes
Network	wired, wireless
Connectivity	usb
OS Compatibility	pc: windows xp home, xp professional, vista, 7, 8, server 2003, server 2003 r2, server 2008, server 2008 r2 or server 2012, mac: os x 10.6.x, 10.7.x or 10.8.x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.8 inches
Width	17 inches
Net Weight	31.5 pounds
