Brother MFC-J6520DW

3-100
Confidential
9.45 Ink Refill ASSY
(1) Release the Ink supply tube from the Tube support wire.
(2) Release the Ink supply tube from the Tube support plate.
(3) Remove the Ink refill ASSY.

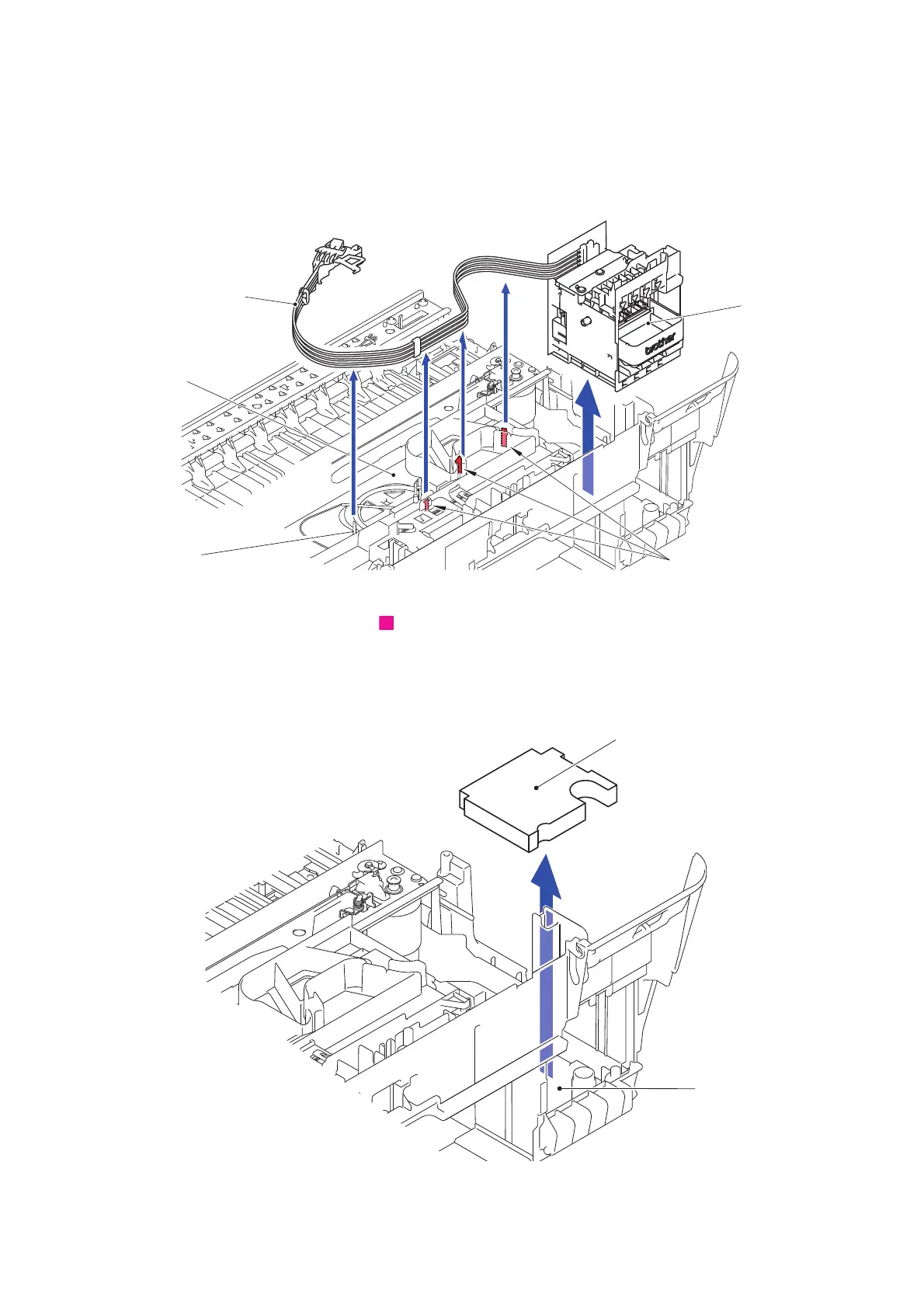

Fig. 3-116
Harness routing: Refer to " Main PCB ASSY and MJ PCB ASSY"
9.46 Ink Absorber Felt (for Ink Refill ASSY)
(1) Remove the Ink absorber felt (for ink refill ASSY).
Fig. 3-117
Ink refill
ASSY
Tube support
Ink supply tube
Tube support plate
Hooks
wire
2
Ink absorber felt
(for ink refill ASSY)
Machine body
<Front>
<Rear>
