Brother MFC-J6520DW

To Next Page

To Previous Page

3-101

Confidential

9.47 Ink Cartridge Cover Sensor ASSY

(1) Release the wiring of the Ink cartridge cover sensor ASSY.

(2) Release the Hook and remove the Ink cartridge cover sensor ASSY.

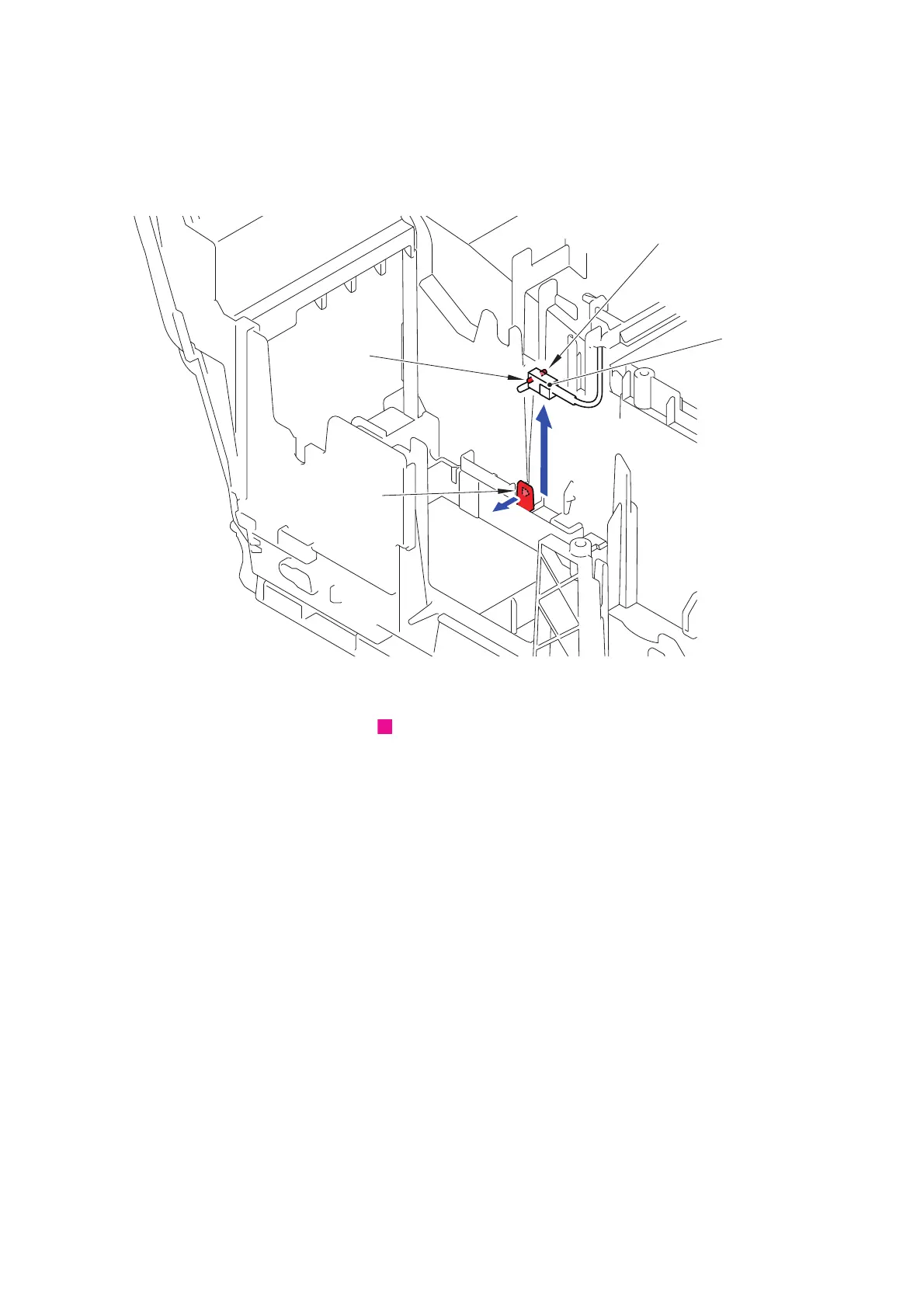

Fig. 3-118

Harness routing: Refer to " Carriage motor harness and ink cartridge cover sensor

ASSY"

Ink cartridge

cover sensor

ASSY

Hook

<Front>

<Rear>
