Brother MFC-J6520DW Service Manual

3-46
Confidential

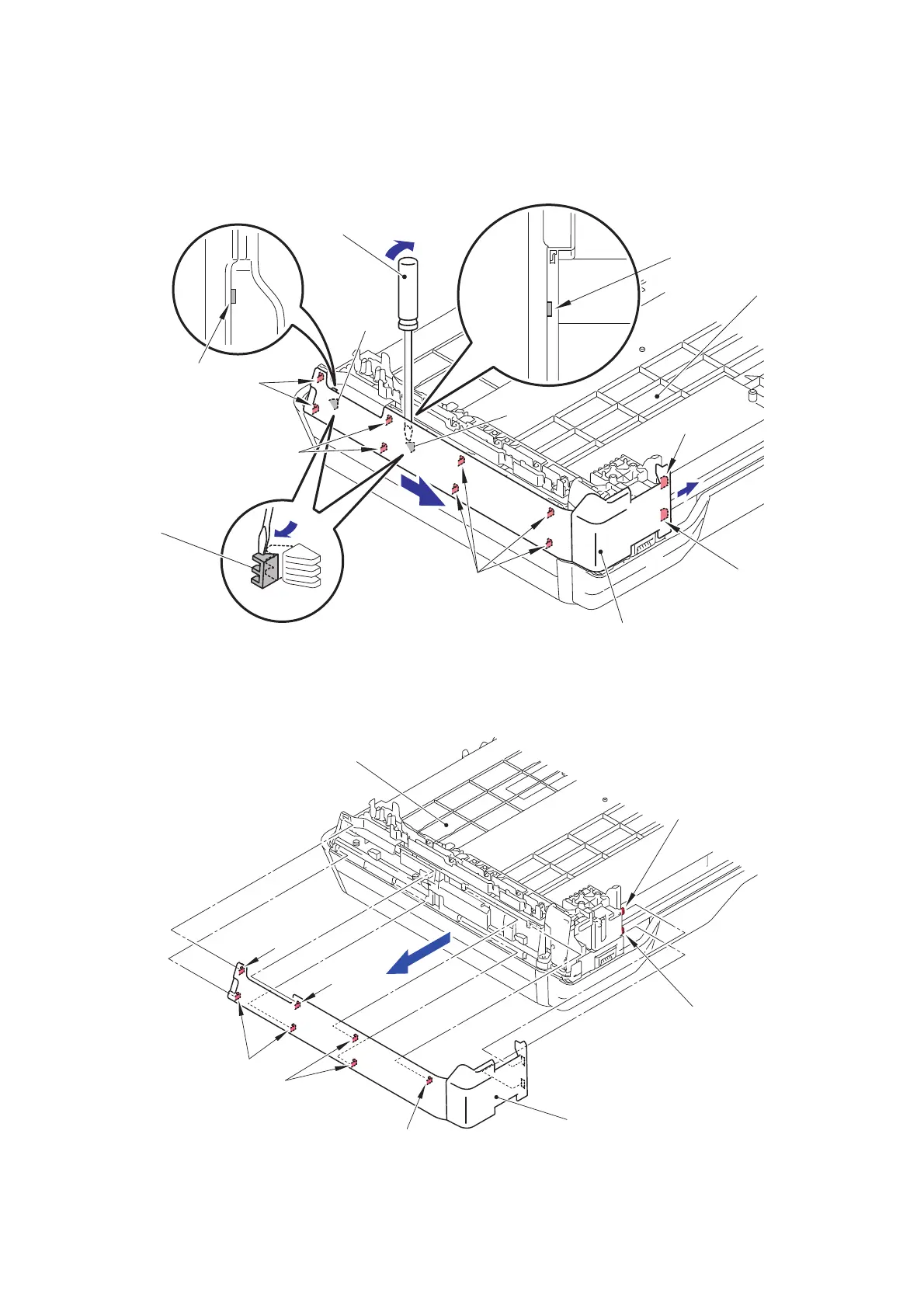

9.6 Document Scanner Side Cover L
(1) Insert a Flat screwdriver into the Cutout and release the sections “A” and “B”.
(2) Slide the Document scanner side cover L to release the nine Hooks.
Fig. 3-32
(3) Remove the Document scanner side cover L from the Document scanner unit.
Fig. 3-33
Hook
Document scanner side cover L
Hooks
Hooks
Hooks
Document scanner unit
Cutout
Flat screwdriver
“A”
“A”
Hook
Cutout
“B”
“B”
Document scanner side cover L
Hook
Hooks
Hooks
Hook
Hook
Hook
Hook
Document scanner unit

Brother MFC-J6520DW Specifications

General

Type	all in one
Color	gray
Tray Capacity	250
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 250 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Maximum Number of Pages Per Month	up to 25, 000
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	yes
Network	wired, wireless
Connectivity	usb
OS Compatibility	pc: windows xp home, xp professional, vista, 7, 8, server 2003, server 2003 r2, server 2008, server 2008 r2 or server 2012, mac: os x 10.6.x, 10.7.x or 10.8.x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.8 inches
Width	17 inches
Net Weight	31.5 pounds
