Brother MFC-J6520DW

To Next Page

To Previous Page

3-56

Confidential

9.15 Document Separation Roller ASSY

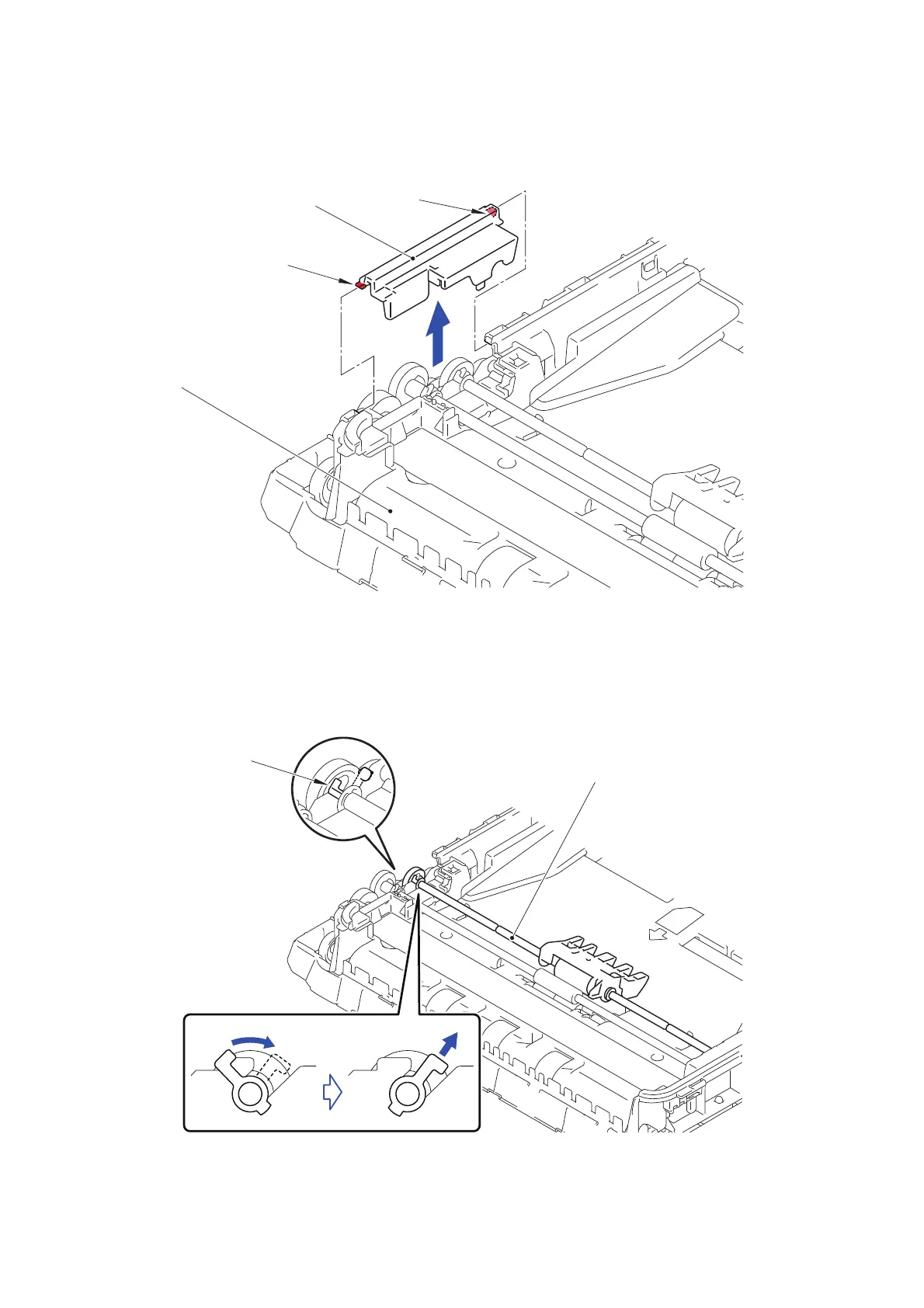

(1) Release the two Hooks and remove the ADF cover plate from the ADF unit.

Fig. 3-49

(2) Turn the Bushing of the Document separation roller ASSY in the direction of the

arrow 2a to unlock it.

Fig. 3-50

Hook

ADF cover plate

ADF unit

Document separation roller ASSY

Bushing
