9.50 Switchback Sensor PCB

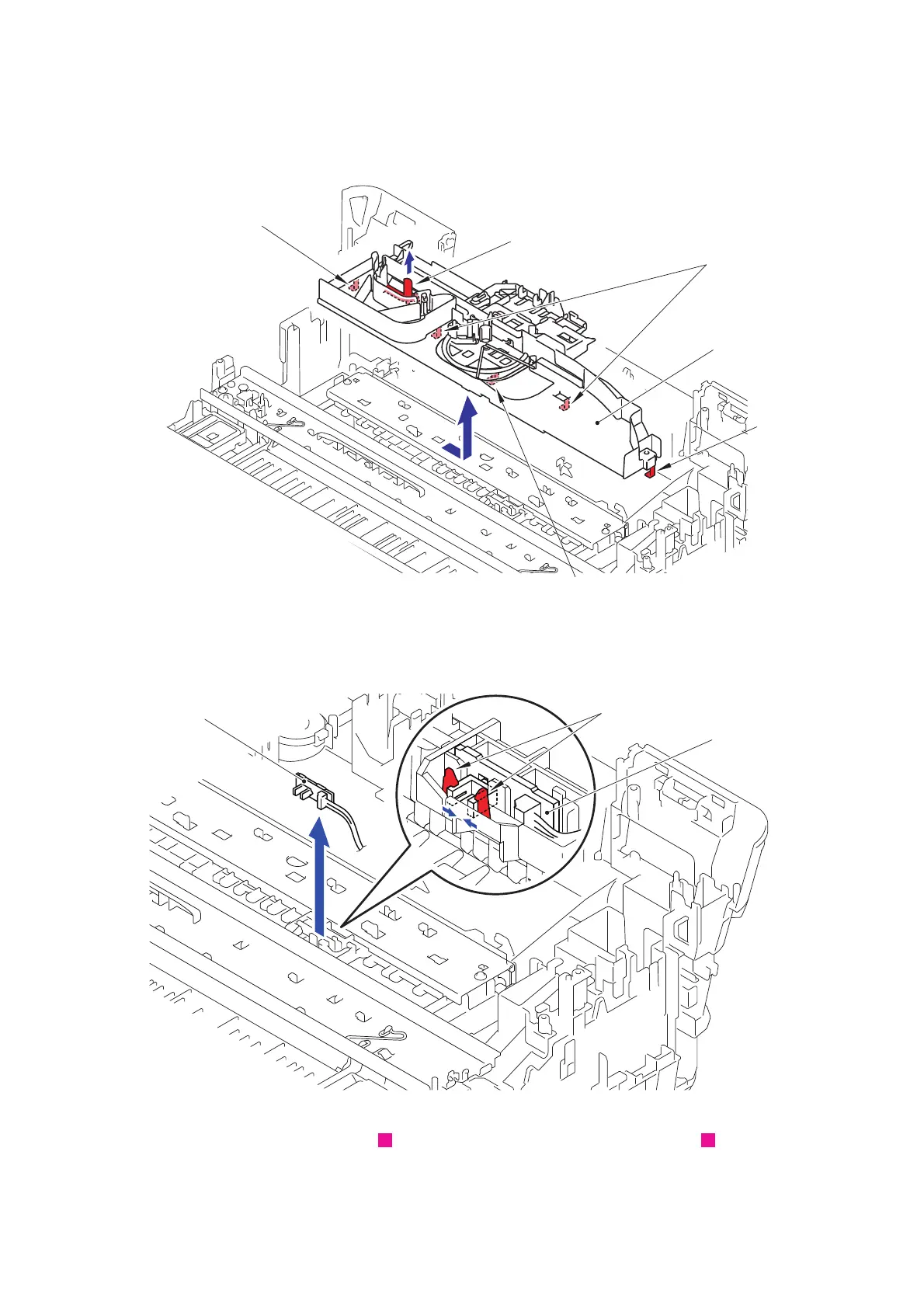

(1) Release the six Hooks and remove the Tube support plate.

Fig. 3-121

(2) Release the wiring of the Switchback sensor harness.

(3) Release the two Hooks and remove the Switchback sensor PCB.

Fig. 3-122

Harness routing: Refer to " Main PCB ASSY and MJ PCB ASSY", " Switchback

sensor PCB"

Hook

Hooks

Tube support plate

<Front>

<Rear>

Hook

Hooks

Switchback

sensor PCB

Switchback sensor PCB
