9.44 Carriage PCB ASSY

(1) Release the wiring of the Flat cable of the Ink refill ASSY.

(2) Release the Hook and remove the Flat core.

(3) Release the wiring of the three Flat cables of the Carriage PCB ASSY.

(4) Pull out the three Flat cables of the Carriage PCB ASSY from the Tube clamp.

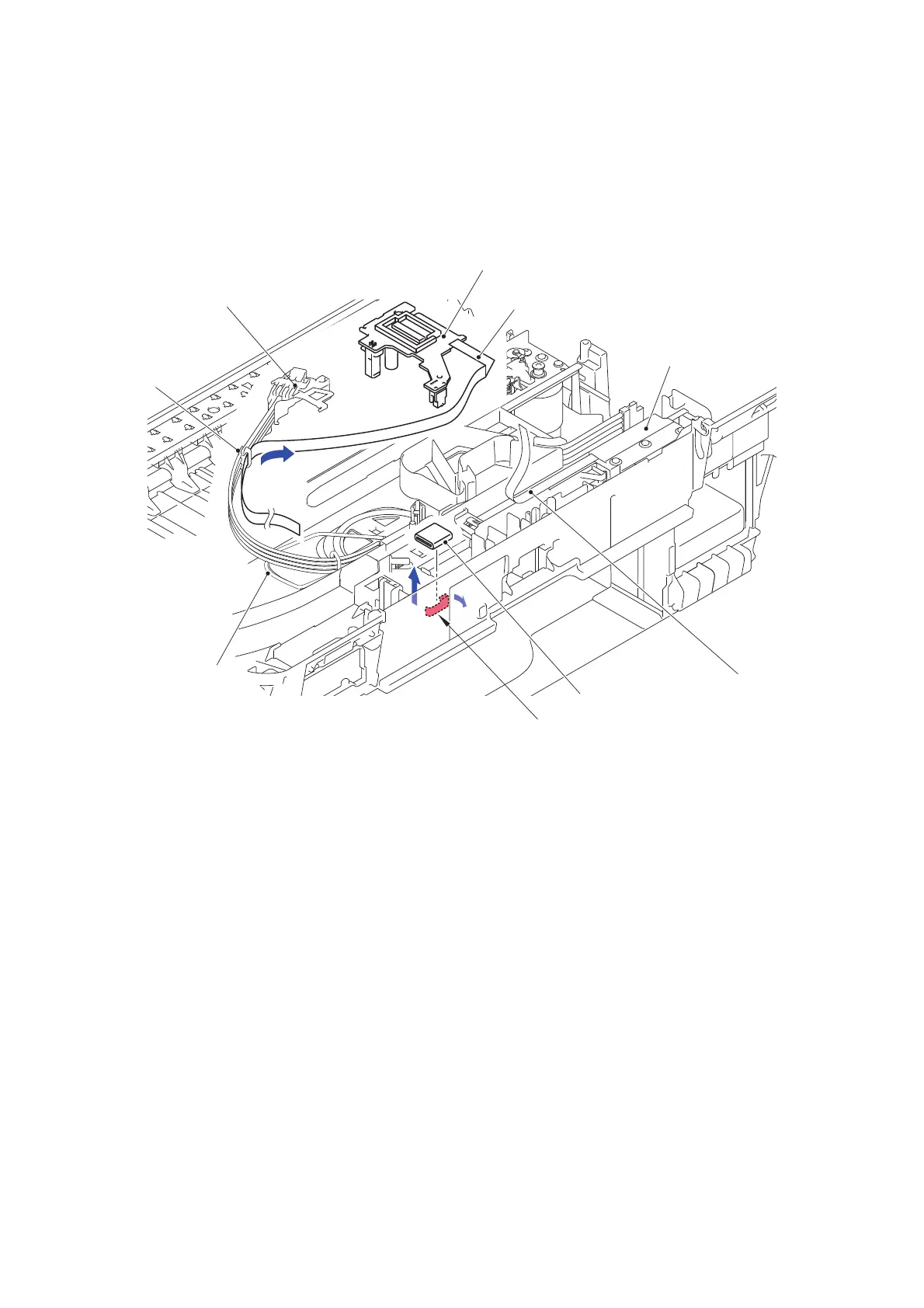

Fig. 3-114

Ink refill ASSY

Flat cable

Flat core

Head joint

Tube clamp

Flat cable of the Carriage PCB ASSY

Tube support wire

Carriage PCB ASSY

Hook
