Brother MFC-J6520DW

To Next Page

To Previous Page

3-127

Confidential

9.63 T2 Bank ASSY

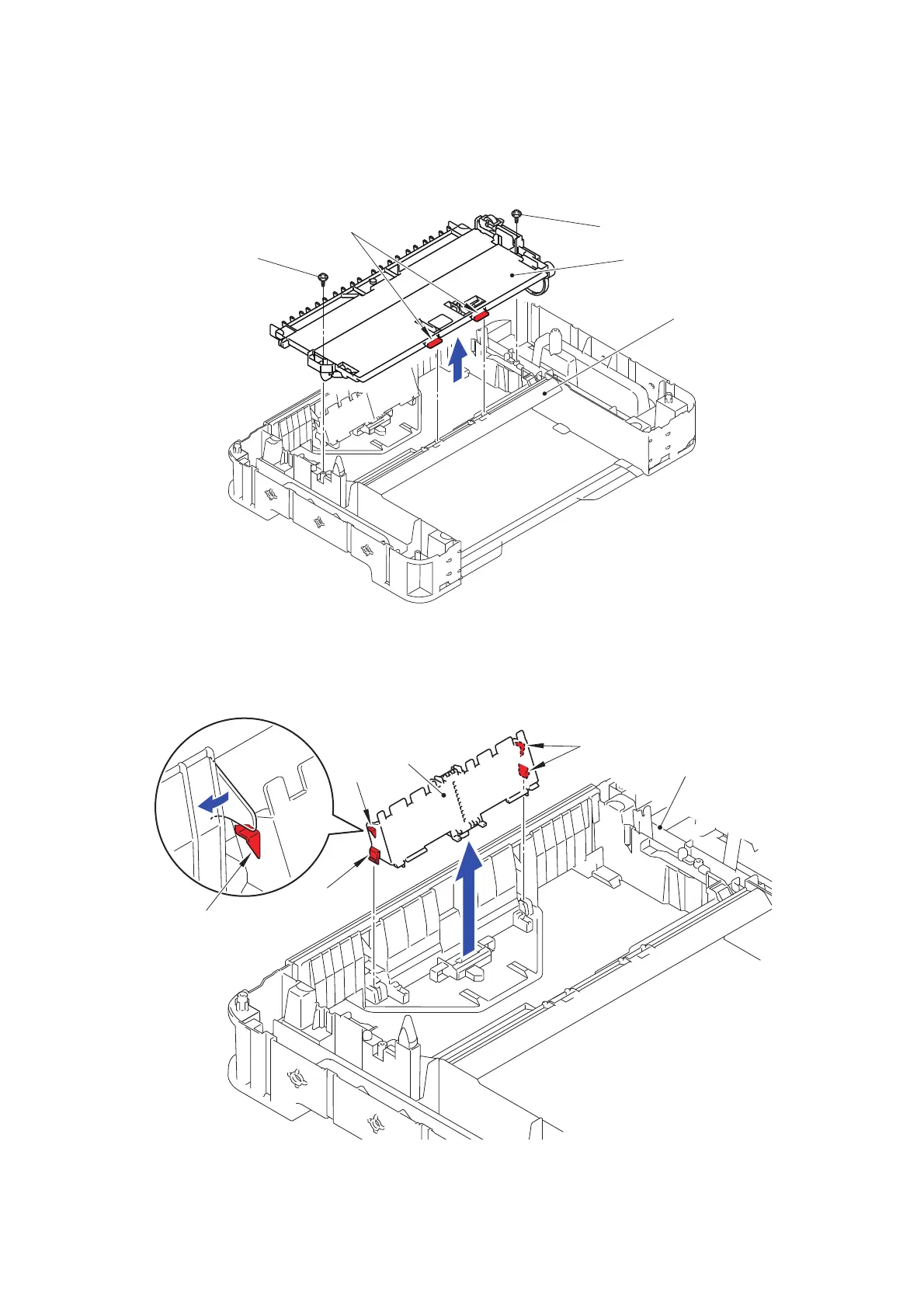

(1) Remove the two screws (TAPTITE CUP B M3x8) from the Lower tray frame.

(2) Release the two Hooks and remove the Lower tray frame from the Lower tray unit.

Fig. 3-154

(3) Release the four Hooks and remove the T2 bank ASSY from the Lower tray unit.

Fig. 3-155

TAPTITE CUP B M3x8

Lower tray frame

Lower tray unit

Hooks

Lower tray unit

Hooks

Hook

T2 bank ASSY
