Brother MFC-J6520DW

To Next Page

To Previous Page

3-48

Confidential

9.8 ADF Unit, Document Scanner Unit and ADF Hinge

(1) Release all the wiring from the Scanner harness holder.

(2) Release the Hook from the Document scanner unit and lift up the Scanner harness

holder.

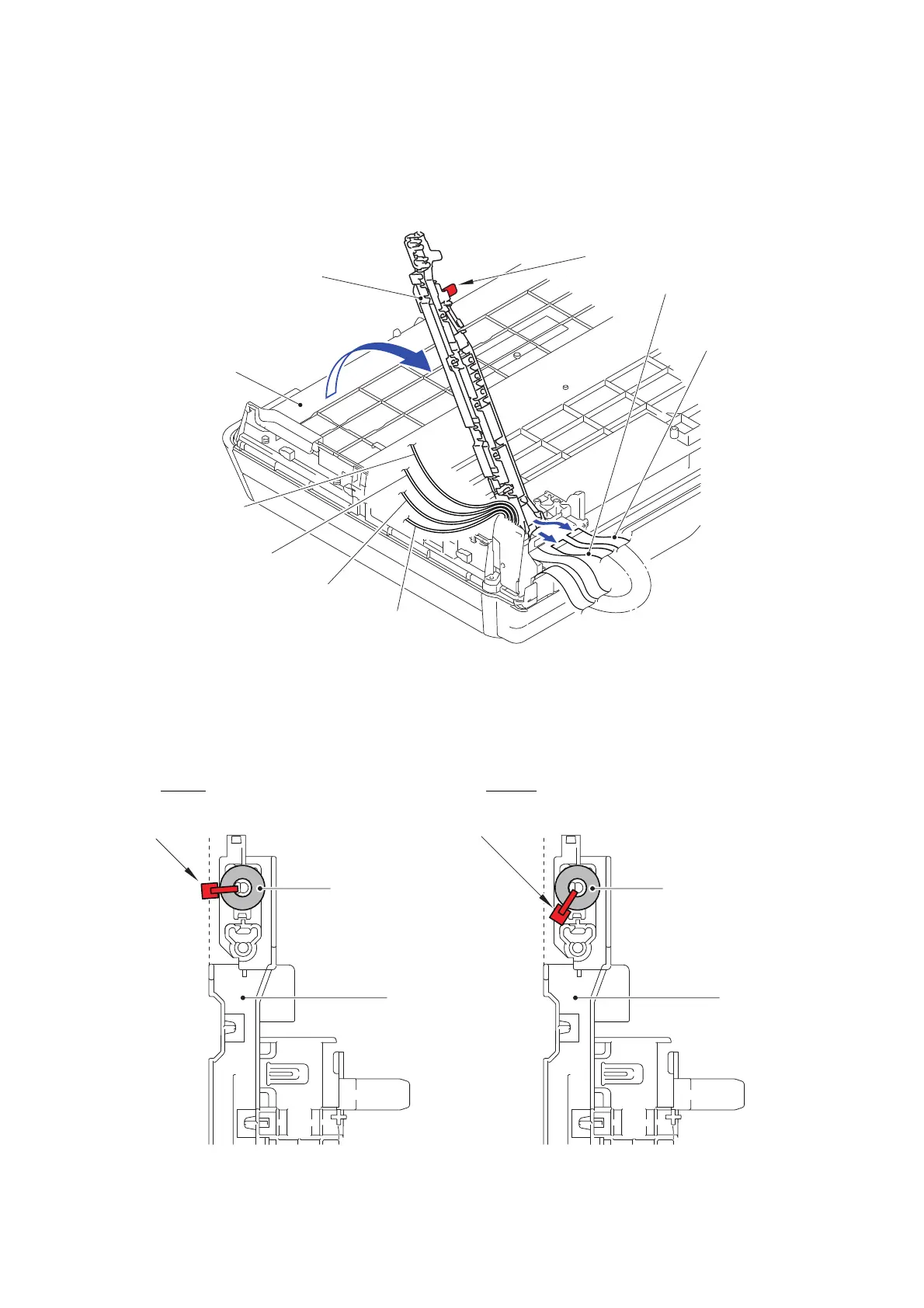

Fig. 3-36

Assembling Note: Mount the Ferrite core of the ADF motor harness to the Scanner

harness holder so that the Cable tie is positioned as shown in the

figure.

Fig. 3-37

Scanner harness holder

First side CIS flat cable

Hook

ADF motor harness

FB FG wire

Second side CIS flat cable

Scanner motor harness

ADF cover sensor/

Document scanning position sensor/

Document detection sensor harness

Document scanner

unit

Scanner

harness holder

Scanner

harness holder

Cable tie

Ferrite core

Cable tie

Wrong Correct
