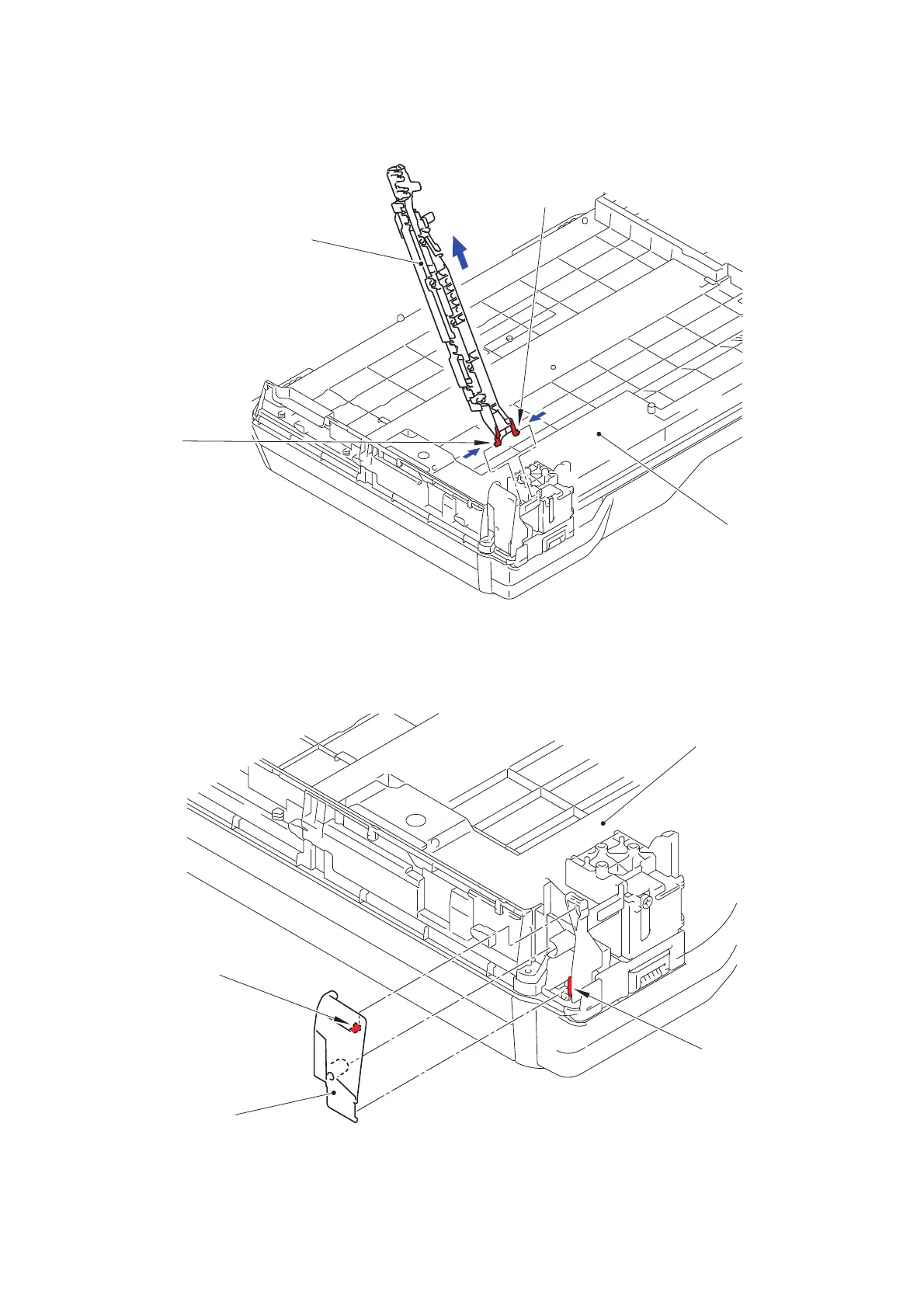

(3) Release the two Hooks and remove the Scanner harness holder from the

Document scanner unit.

Fig. 3-38

(4) Release the two Hooks and remove the Harness support from the Document

scanner unit.

Fig. 3-39

Hook

Scanner harness holder

Document scanner unit

Hook

Document scanner unit

Harness support
