Brother MFC-J6520DW

To Next Page

To Previous Page

3-50

Confidential

(5) Turn the Document scanner unit right side up.

(6) Remove the two screws (TAPTITE BIND B M4x12) from the Document scanner unit.

(7) Open the ADF unit fully.

Note: Lifting up the ASSY without fully opening it in step (8) opens the ADF hinge

suddenly and unexpectedly with great force. It is DANGEROUS!

Hinweis: Das Anheben der Baugruppe, ohne sie zuvor vollständig geöffnet zu haben,

führt in Schritt (8) dazu, dass der Scharnierarm L plötzlich und unerwartet mit

großer Kraft nach oben schnellt. Dies ist GEFÄHRLICH!

(8) Remove the ADF unit from the Document scanner unit.

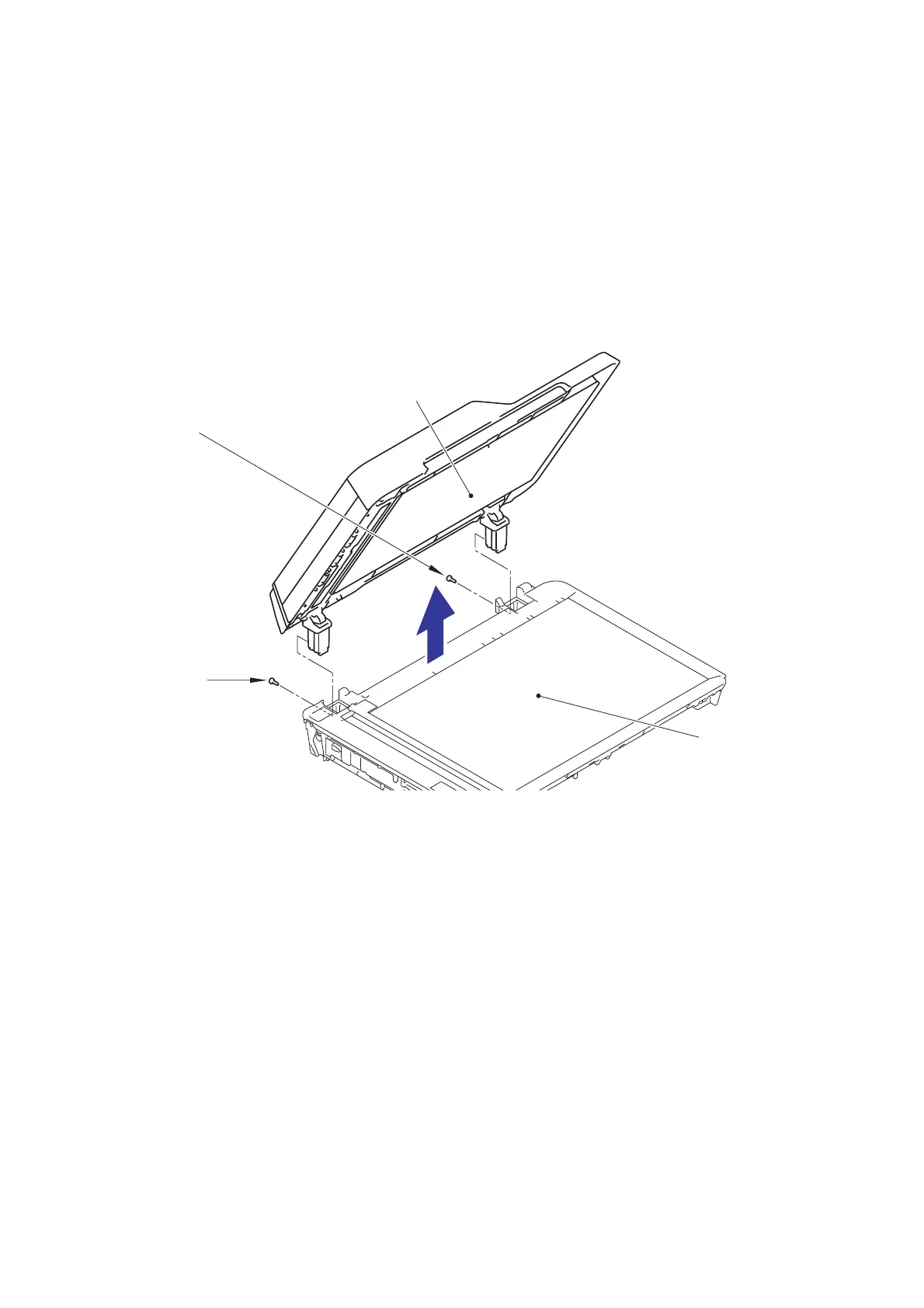

Fig. 3-40

TAPTITE BIND B M4x12

TAPTITE BIND

B M4x12

ADF unit

Document scanner

unit
