Brother MFC-J6520DW

3-124
Confidential

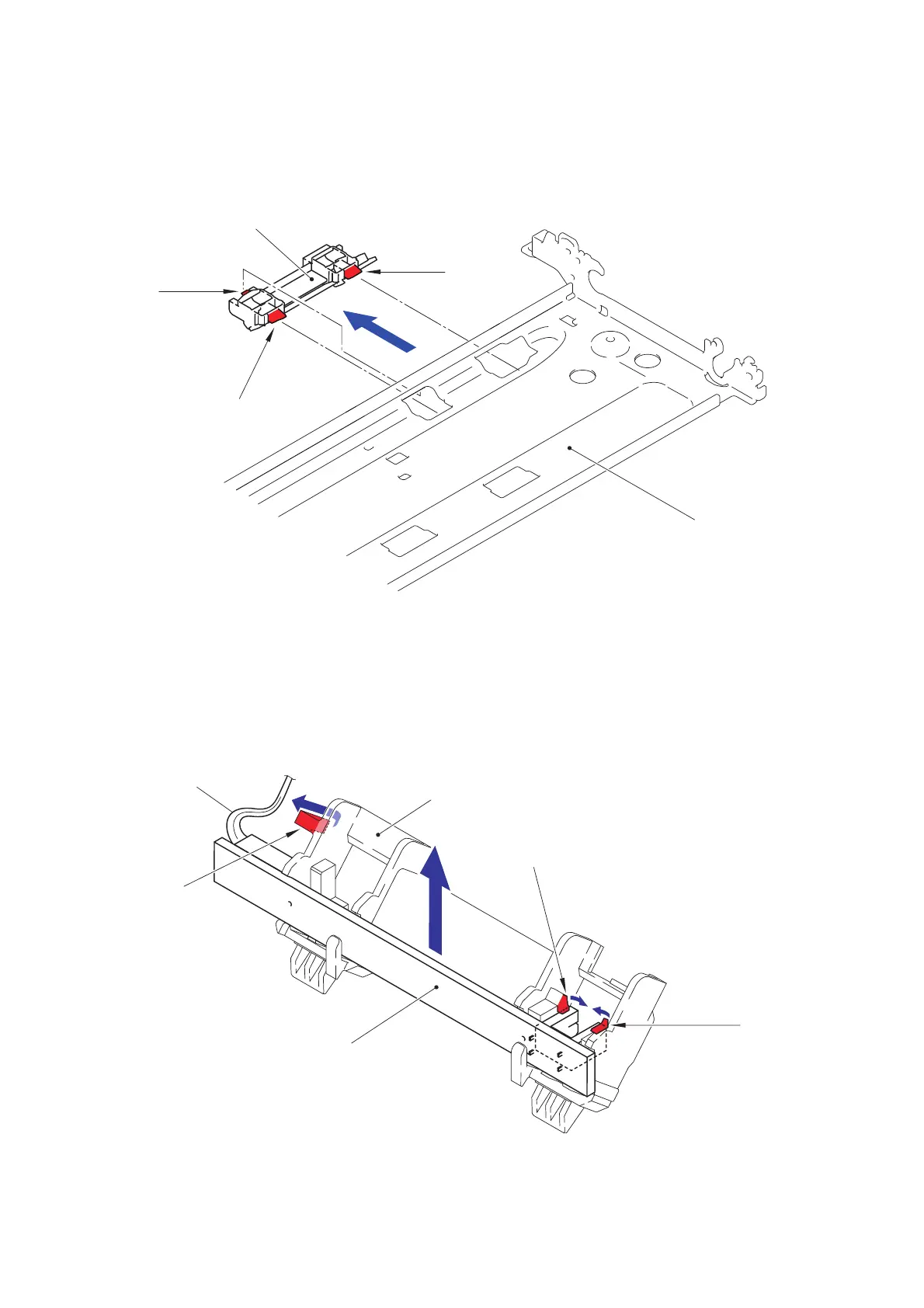

9.61 Registration Sensor PCB ASSY
(1) Release the three Hooks and remove the Registration sensor holder from the
Frame base.
Fig. 3-149
(2) Release the Registration sensor harness from the Hook.
(3) Release the two Hooks and remove the Registration sensor PCB ASSY from the
Registration sensor holder.
Fig. 3-150
Hook
Hook
Registration sensor holder
Hook
Frame base
Hook
Hook
Registration sensor PCB ASSY
Registration sensor holder
Registration sensor harness
Hook
2
3b
3a
