Brother MFC-J6520DW - Printer Part

To Next Page

To Previous Page

Confidential

2-4

2.1.2 Printer part

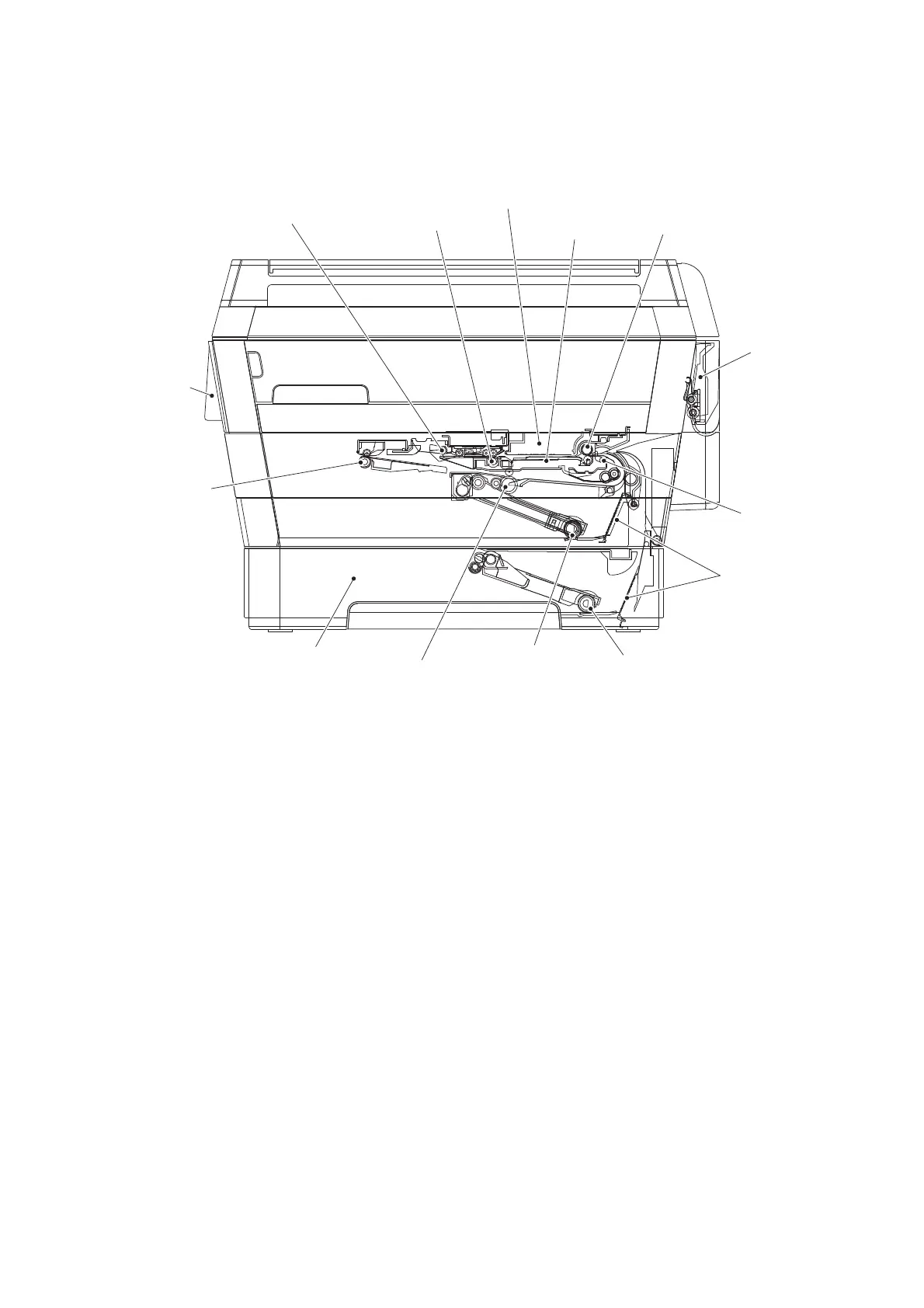

Fig. 2-2

Head/carriage unit

Manual feed slot

Bank ASSY

T2 paper pull-in roller

T1 paper pull-in roller

Lower tray

Duplex paper feed roller

Switchback roller

Panel ASSY

Switchback actuator

Paper ejection roller

Platen

Paper feed roller

Registration actuator
