4.8 Scanned-image Problems

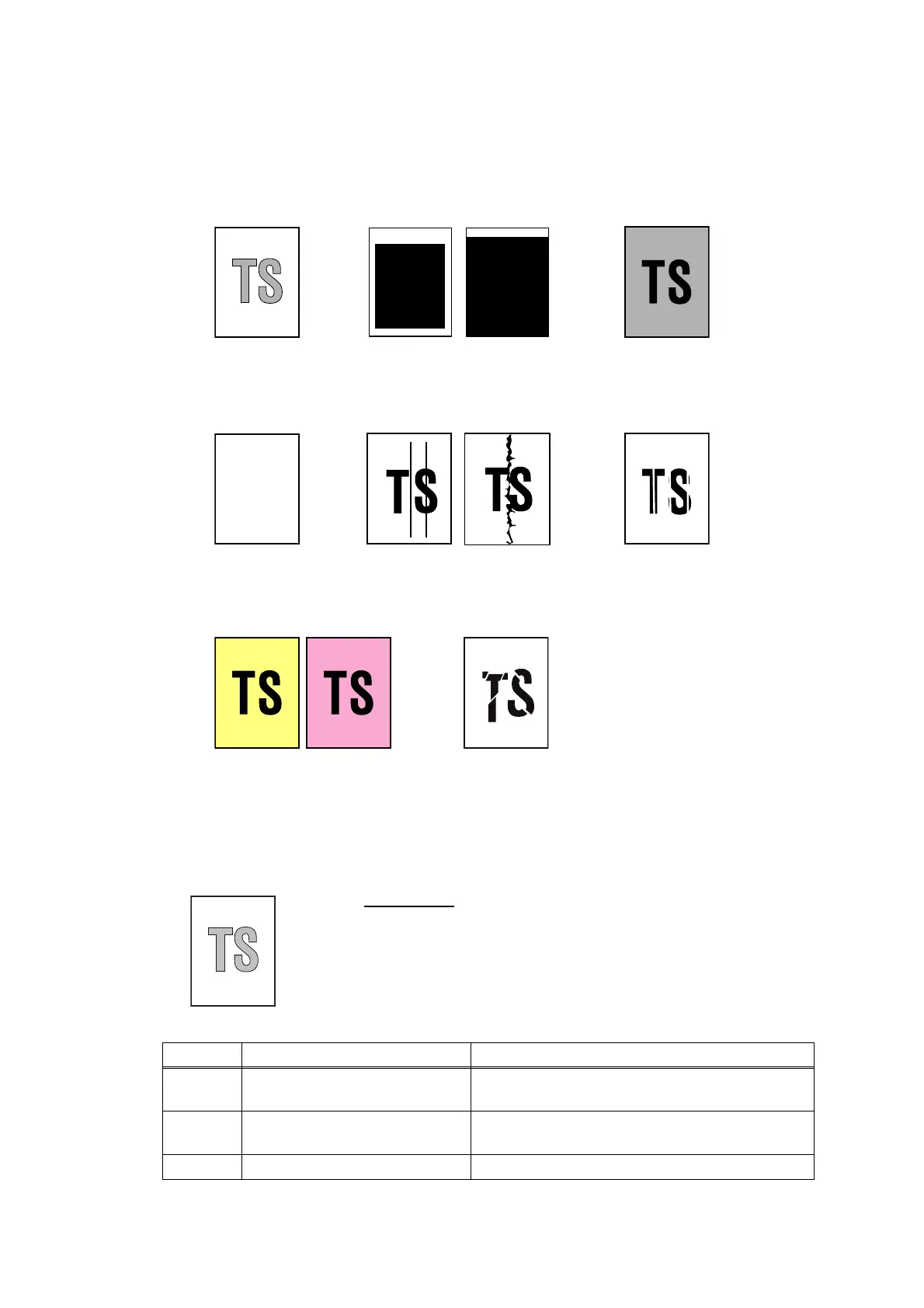

4.8.1 Defective images
Fig. 2-11
4.8.2 Troubleshooting from image defect
Light
User Check
- Check if the contrast is set to "Light."
- Clean document cover glass or ADF glass.
- Clean the document pressure bar.
Step Cause Solution
1 White level correction data
failure
Carry out maintenance 55.
2 First side or second side CIS
unit defective
Replace the first side or second side CIS unit.
3 Main PCB defective Replace the main PCB ASSY.
Light
Scanning position failure
Dark
Completely blank
Straight vertical stripes
White vertical streaks
Colored over the whole page
Entire image is distorted
To Next Page
