Brother MFC-J6520DW

To Next Page

To Previous Page

3-82

Confidential

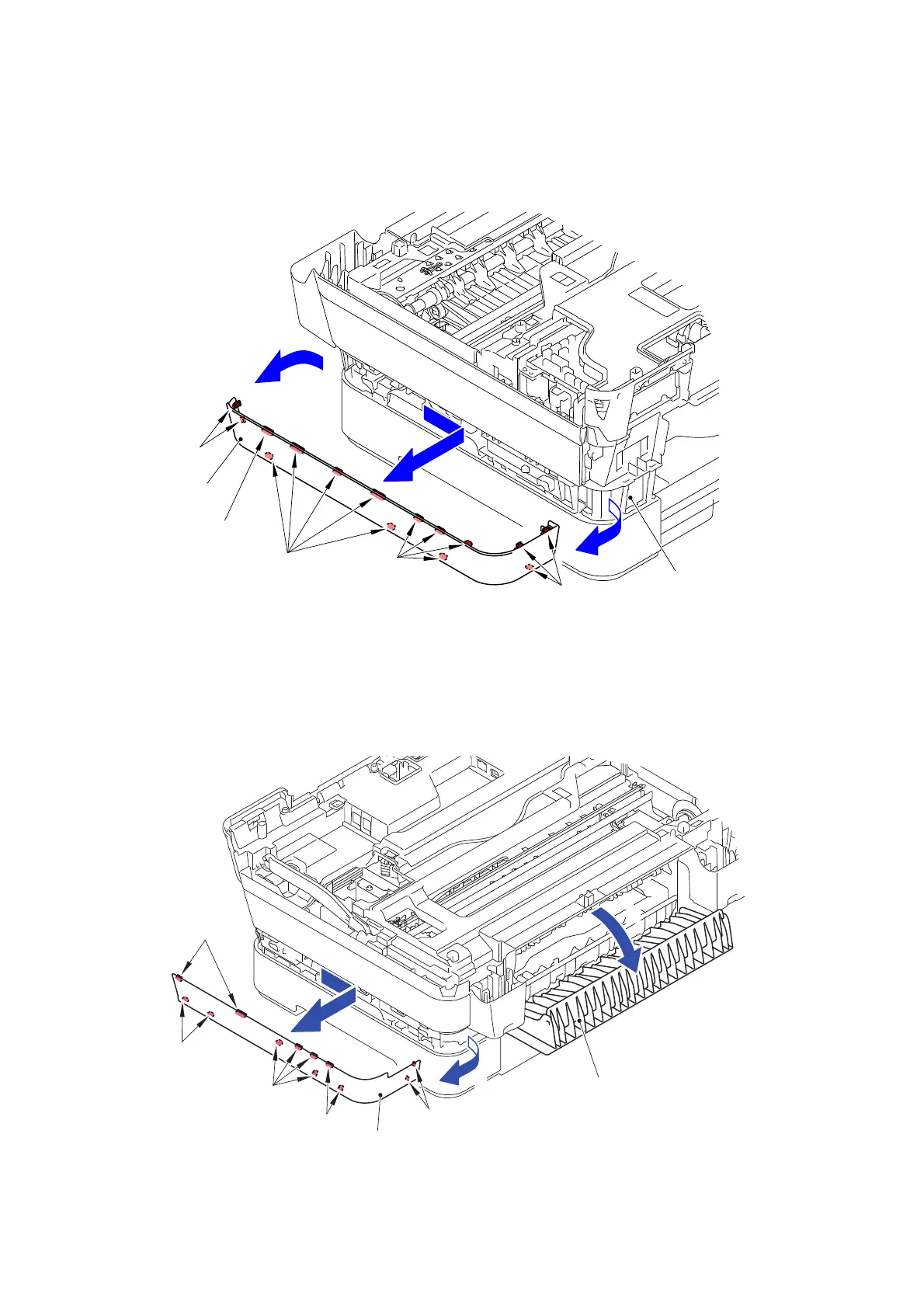

9.31 Lower Side Cover L

(1) Release the two Hooks at the rear side of the Lower side cover L.

(2) Release the three Hooks at the front side of the Lower side cover L.

(3) Slide off the Lower side cover L in the direction of the arrow.

Fig. 3-92

9.32 Lower Side Cover R

(1) Open the Jam clear cover.

(2) Release the two Hooks at the rear side of the Lower side cover R.

(3) Slide off the Lower side cover R in the direction of the arrow.

Fig. 3-93

Lower side cover L

Hooks

<Rear>

<Front>

Lower cover

Hook

Jam clear cover

Hooks

Lower side cover R

<Rear>

<Front>
