Brother MFC-J6520DW

To Next Page

To Previous Page

3-85

Confidential

9.36 Upper Cover

(1) Release the two Bosses and remove the Scanner cover support from the Upper

cover.

(2) Remove the three screws (TAPTITE BIND B M4x12) and take off the Upper cover.

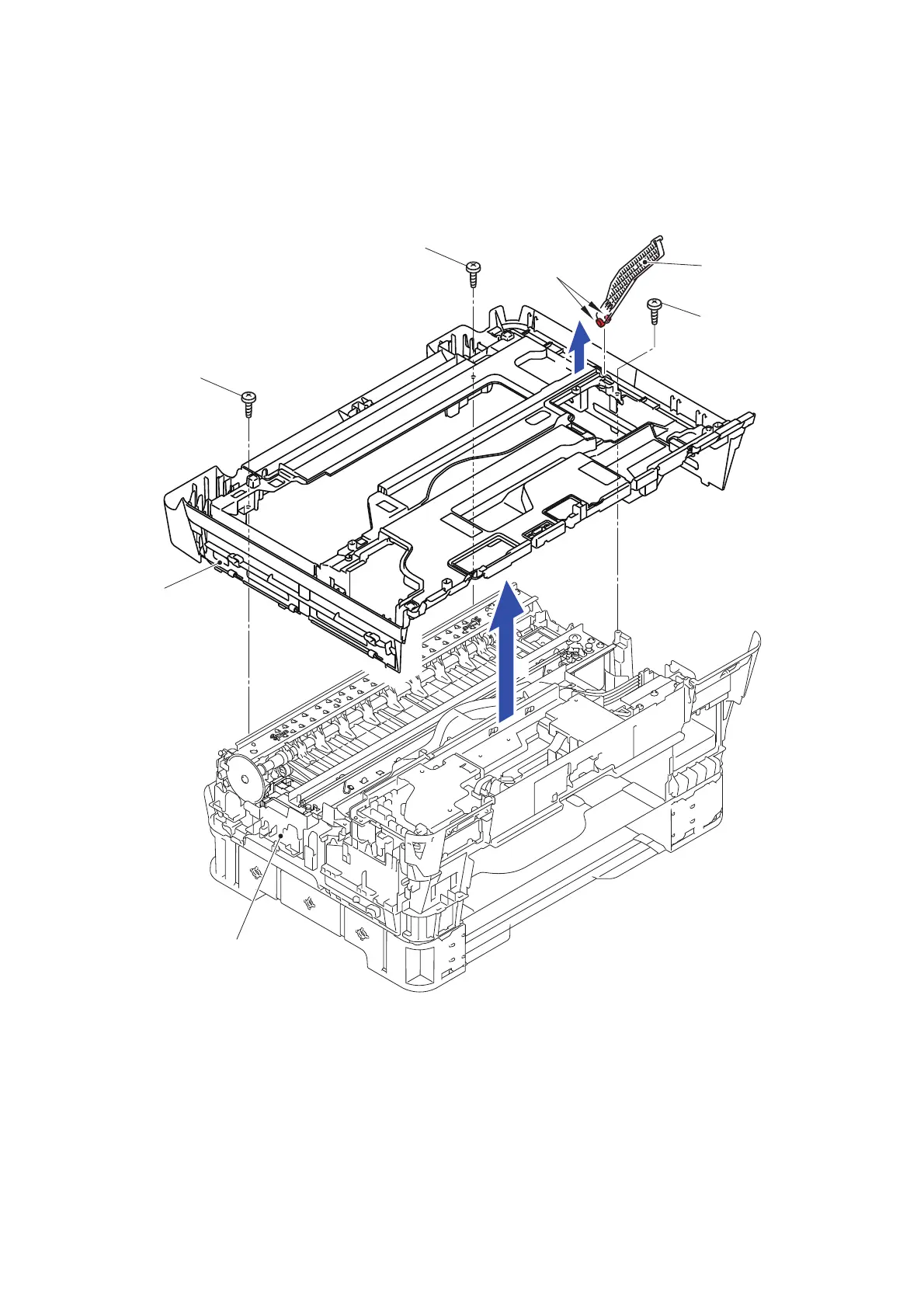

Fig. 3-97

Bosses

Scanner cover

TAPTITE BIND B M4x12

Upper cover

support

Machine body
