Brother MFC-J6520DW

3-123
Confidential
Assembling Note:
1) Assemble the Inner chute ASSY to the Frame base so that the actuator of the
Inner chute ASSY works correctly against the Registration sensor PCB ASSY of
the Frame base.
2) The state of the Assembling Note: 1) must be maintained when the DX paper guide
ASSY is assembled.

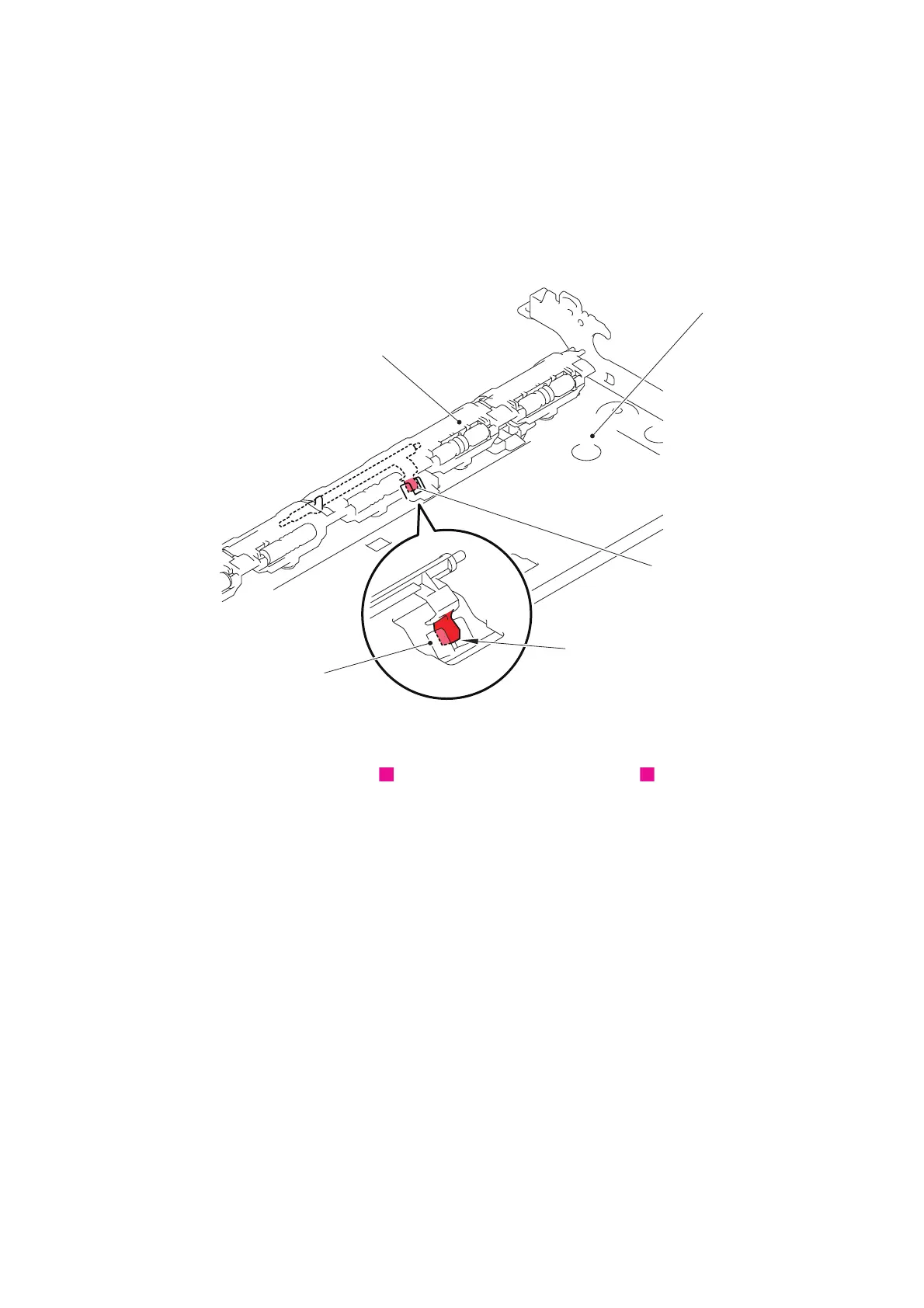

Fig. 3-148
Harness routing: Refer to " Registration sensor harness", " Lower cover (Right
side)"
Inner chute ASSY
Registration sensor PCB ASSY
Actuator
Actuator
Frame base
6 7
