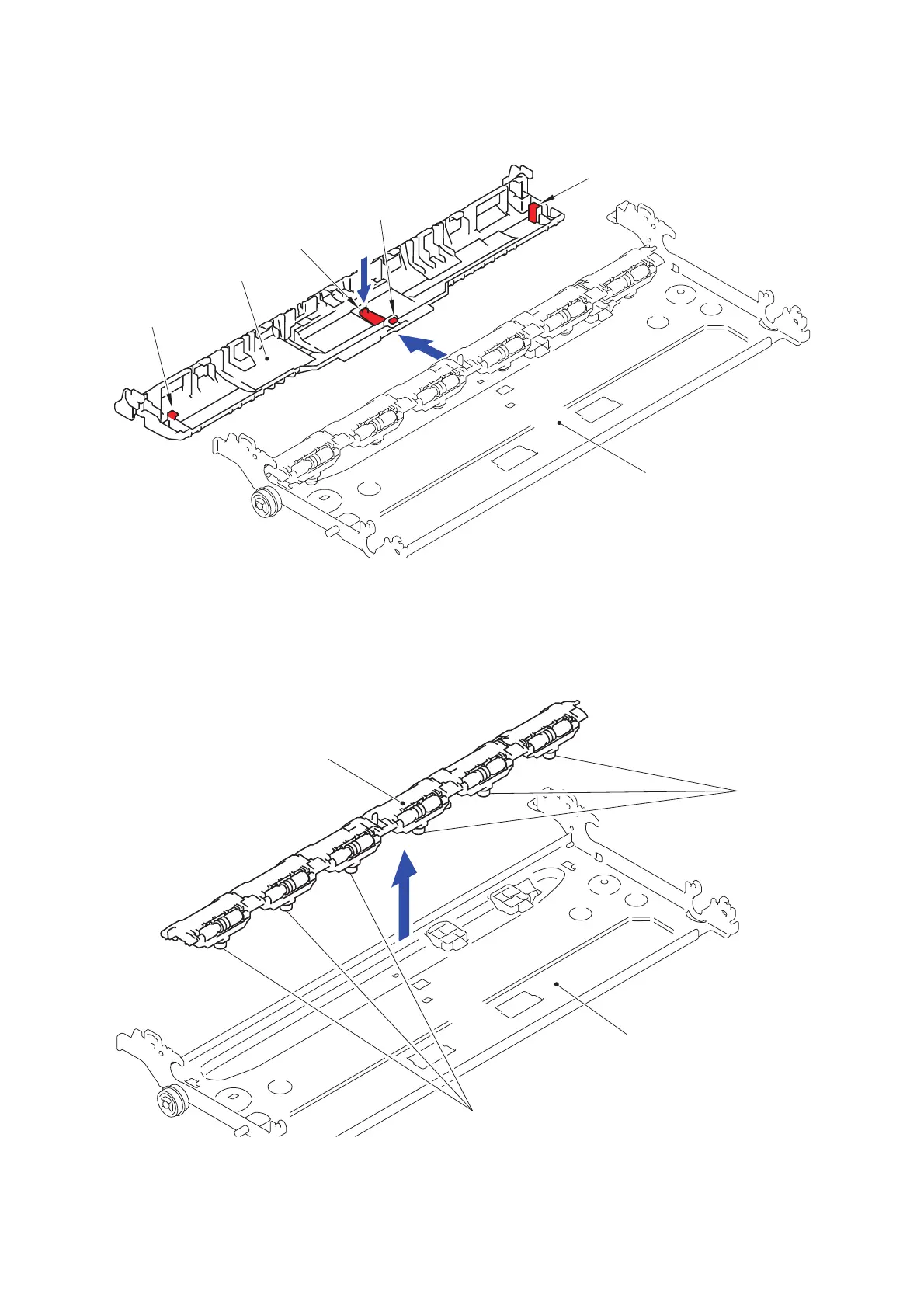

(6) Release the Boss and remove the DX paper guide ASSY from the Frame base.

Fig. 3-146

(7) Remove the Inner chute ASSY from the Frame base.

Note: Be careful not to lose the Pressure roller spring.

Fig. 3-147

Boss

Hook

DX paper guide ASSY

Frame base

Hook

Inner chute ASSY

Frame base

Pressure roller spring

Pressure

spring

roller
