Brother MFC-J6520DW

To Next Page

To Previous Page

3-16

Confidential

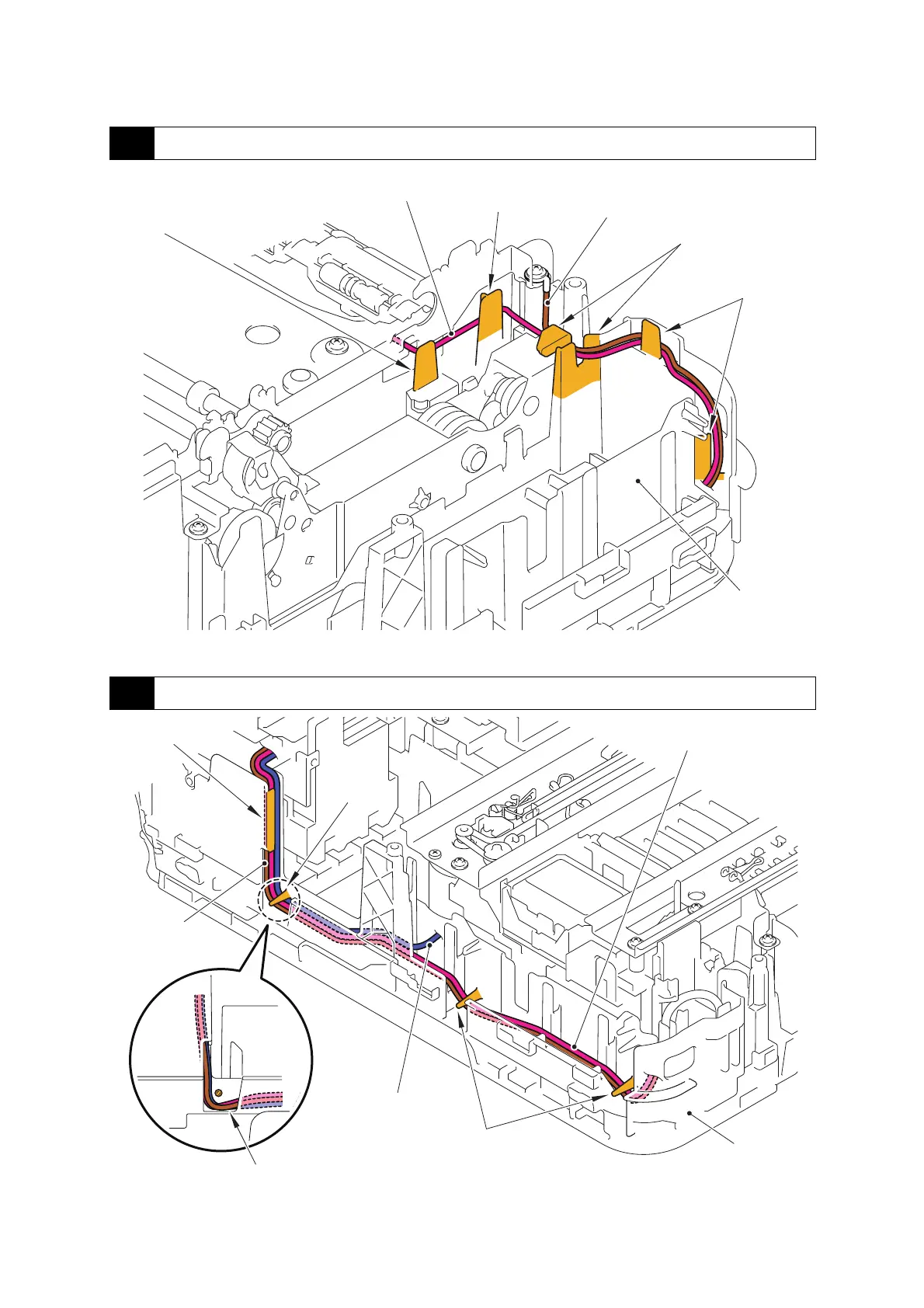

6 Registration sensor harness

7 Lower cover (Right side)

Cable guide

Cable guides

Registration sensor harness

Cable guides

Lower cover

Engine FG wire

Registration sensor harness

Cable guides

Lower cover

Purge cam sensor

harness

Engine FG wire

Cable guides

Leave a little slack in the cables.
