Brother MFC-J6520DW

To Next Page

To Previous Page

3-15

Confidential

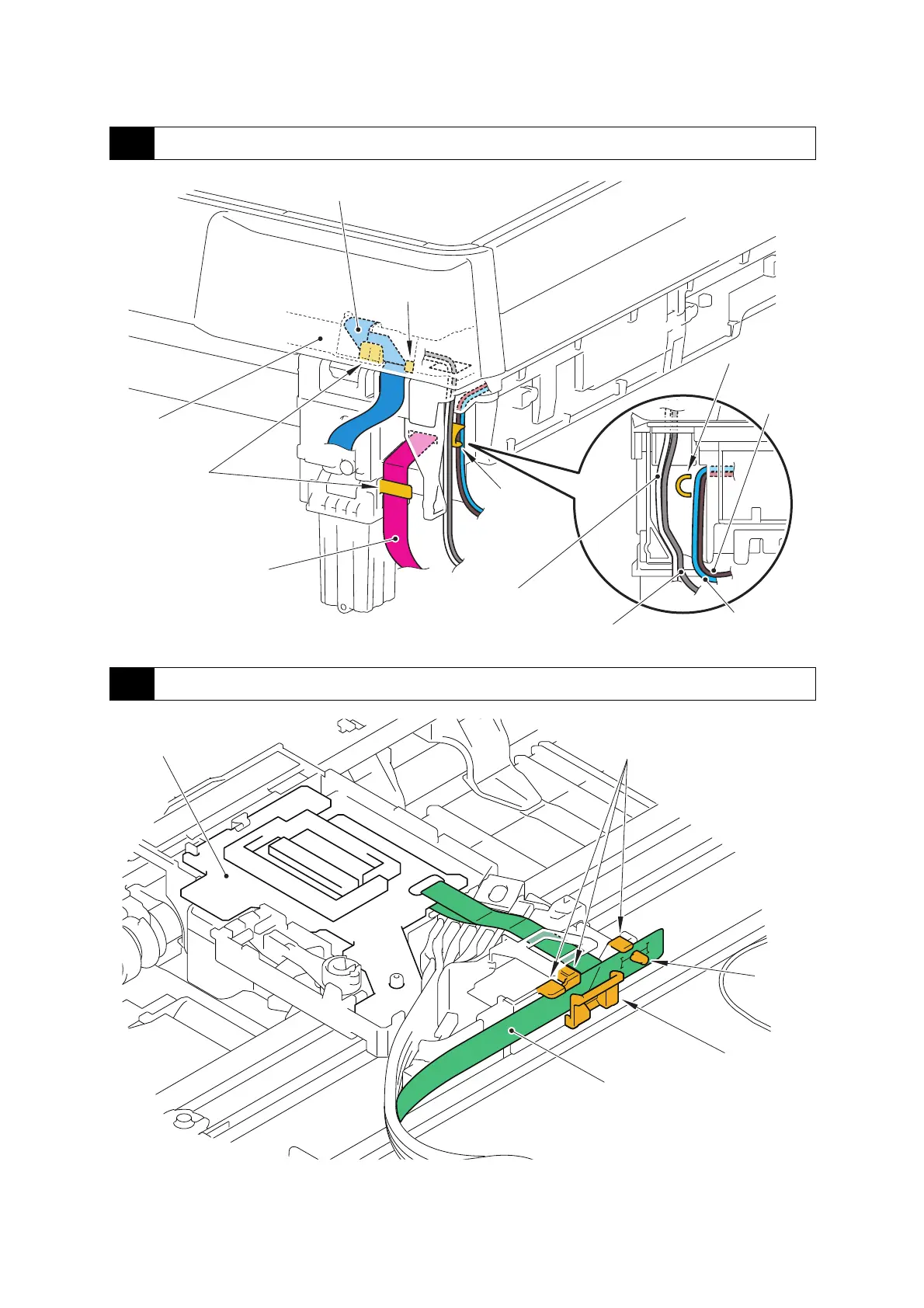

4 ADF unit and document scanner unit

5 Head/carriage unit

Second side CIS flat cable

First side CIS flat cable

Cable guides

ADF motor harness

FB FG wire

Scanner motor

harness

Boss

Cable guide

Document cover ASSY

ADF cover sensor/

Document scanning position sensor/

Document detection sensor harness

Boss

Cable guide

Carriage flat cable

Hooks

Carriage PCB
