Brother MFC-J6520DW

To Next Page

To Previous Page

3-51

Confidential

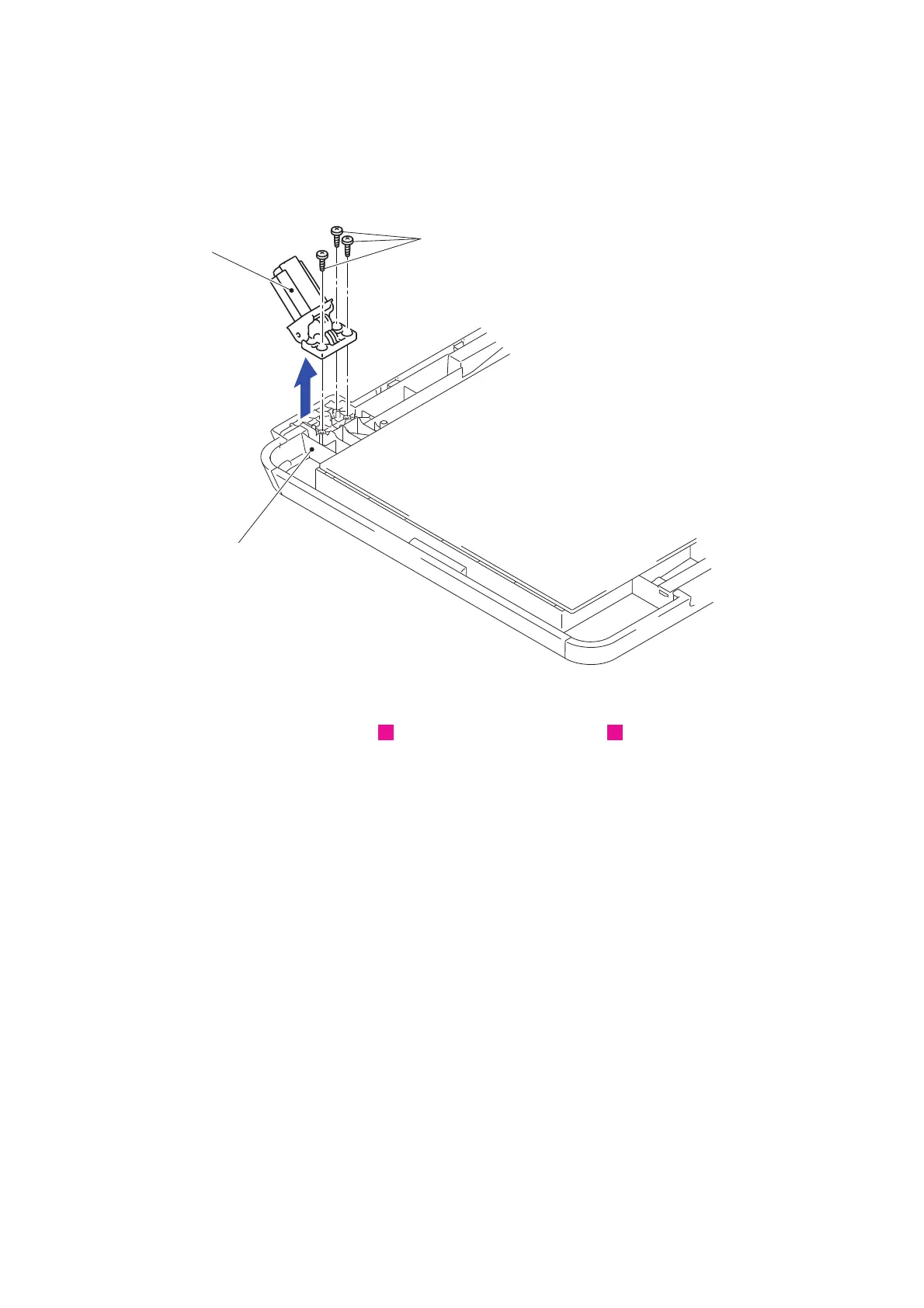

(9) Turn the ADF unit upside down.

(10)Remove the three screws (TAPTITE CUP B M3x10) and take off the ADF hinge

from the ADF unit.

(11)Remove the other ADF hinge in the same way.

Fig. 3-41

Harness routing: Refer to " Scanner harness holder", " ADF unit and document

scanner unit"

TAPTITE CUP B M3x10

ADF hinge

ADF unit

3 4
