3-126

Confidential

(3) Remove the two T1 paper pull-in rollers and ASF gear from the Paper pull-in roller

holder.

(4) Remove the two T1 paper pull-in rollers from the ASF gear.

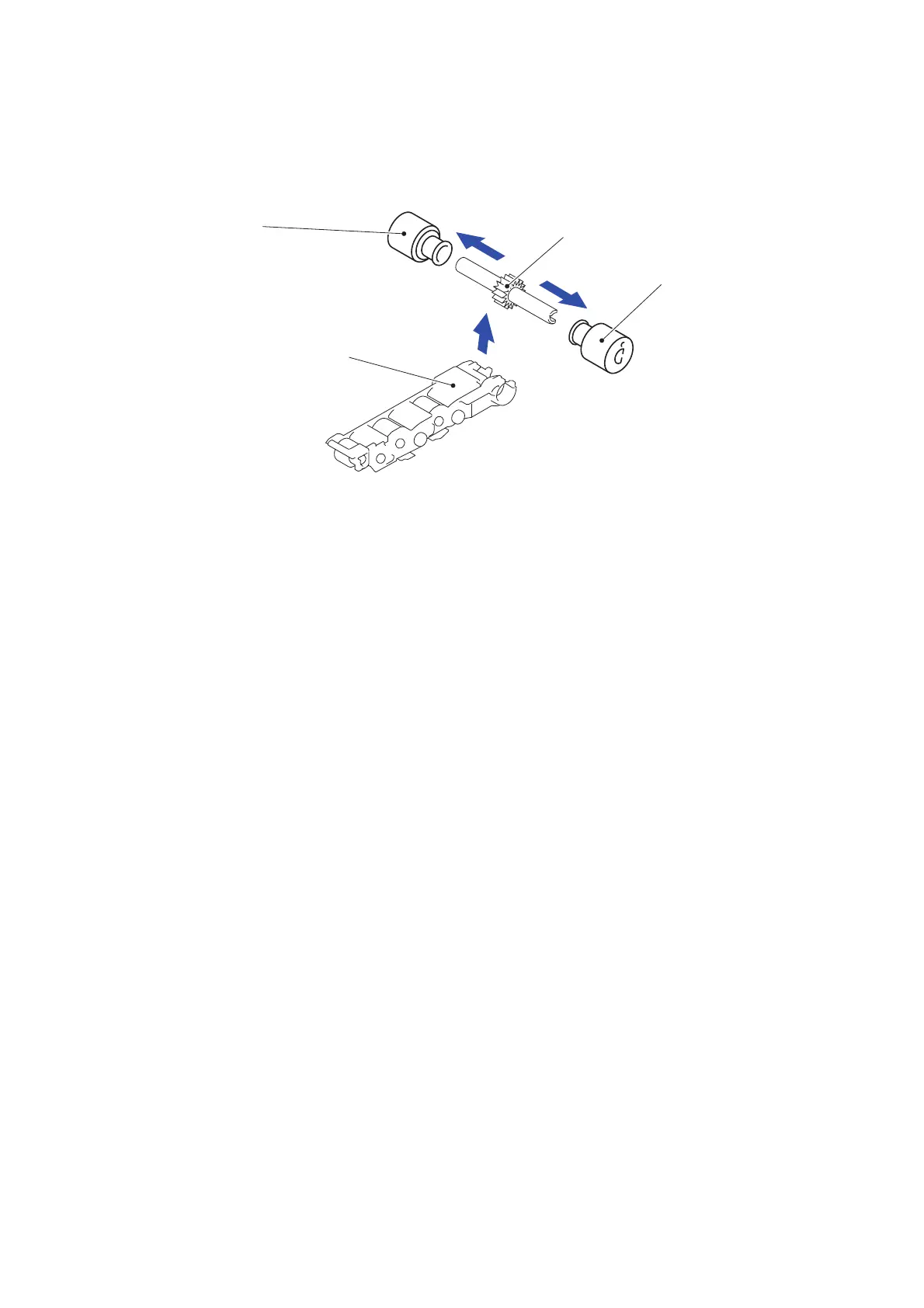

Fig. 3-153

ASF gear

Paper pull-in roller holder

3

4a

4b

T1 paper pull-in roller

T1 paper pull-in roller
