(9) Remove the Power cord from the Power cord holder.

(10)Remove the three screws (TAPTITE CUP S M3x6) and remove the Power supply

PCB ASSY from the Lower power supply frame.

(11)Disconnect the Connector from the Power supply PCB ASSY.

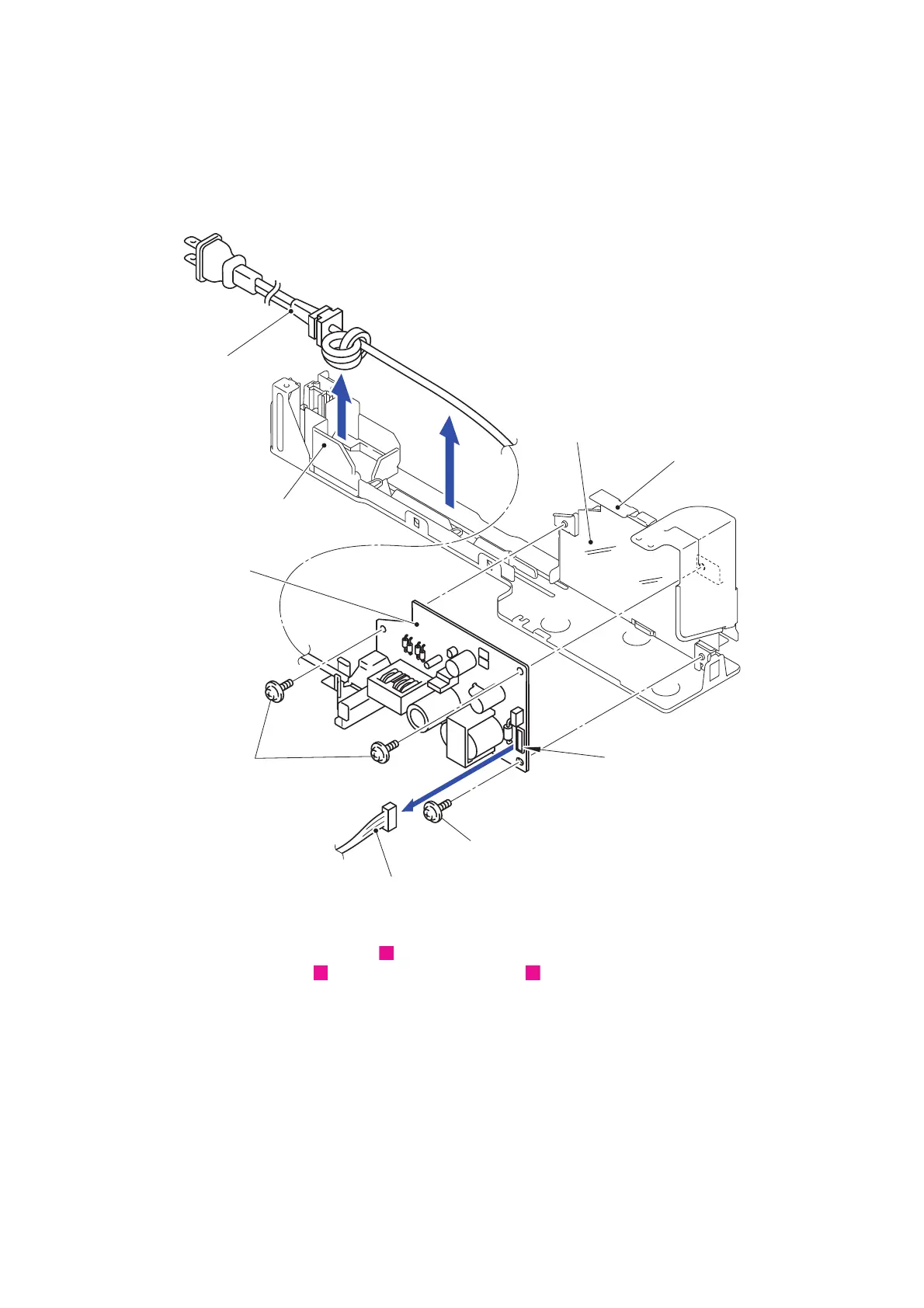

Fig. 3-113

Harness routing: Refer to " Main PCB ASSY and MJ PCB ASSY",

" Lower cover (Left side)"," Power supply PCB ASSY"

TAPTITE CUP S M3x6

Power cord

Power supply

Lower power supply

PCB ASSY

Connector

Power cord holder

Power supply harness

Insulation film (2 sheets)

frame
