(5) Release the wiring of the Power supply harness.

(6) Remove the one screw (TAPTITE CUP S M3x8) from the Lower cover.

(7) Release the two Hooks on the Lower cover and remove the Lower power supply

frame from the Lower cover.

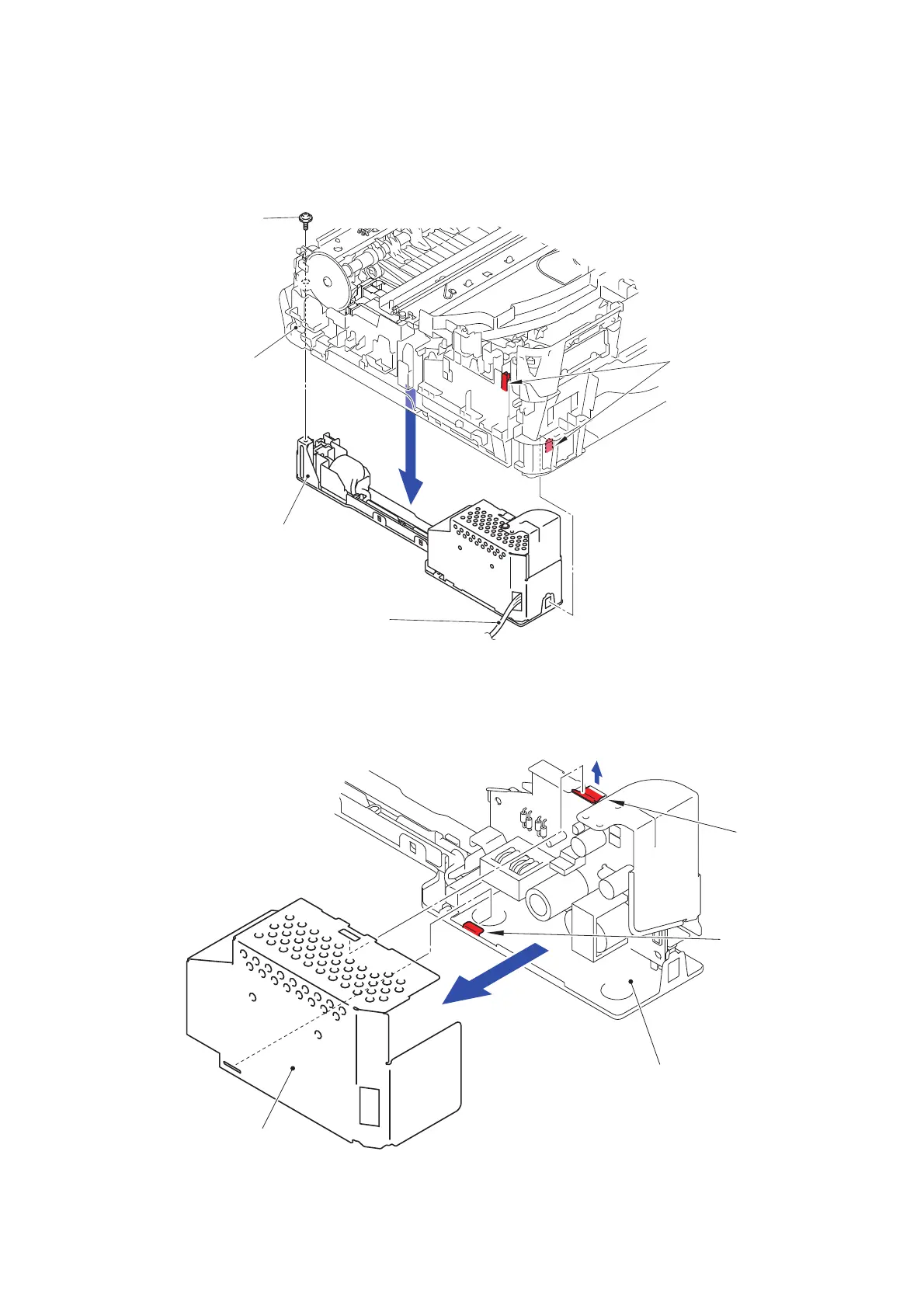

Fig. 3-111

(8) Release the two Hooks and remove the Power supply shield from the Lower power

supply frame.

Fig. 3-112

TAPTITE CUP S M3x8

Lower power supply frame

Hooks

Lower cover

Power supply harness

<Front>

<Rear>

Hook

Power supply shield

Lower power supply frame
