Brother MFC-J6520DW

To Next Page

To Previous Page

3-60

Confidential

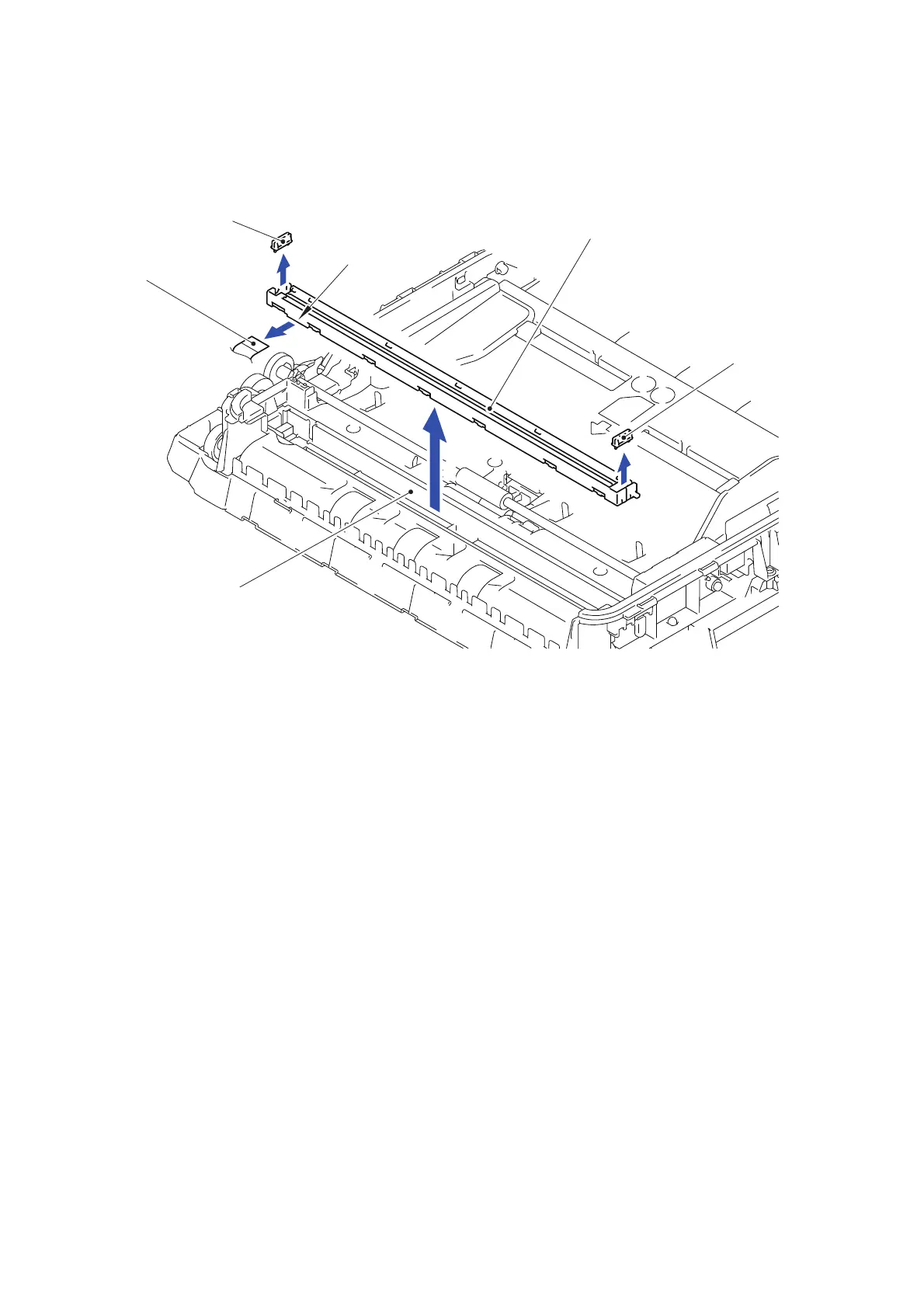

(3) Take off the two CIS guides from the Second side CIS unit.

(4) Lift up the Second side CIS unit from the Upper document chute.

(5) Disconnect the Second side CIS flat cable from the Connector of the Second side

CIS unit.

Fig. 3-56

CIS guide

Upper document chute

Second side CIS unit

Second side CIS flat cable

Connector
